Function Selector Switch Connector - C294

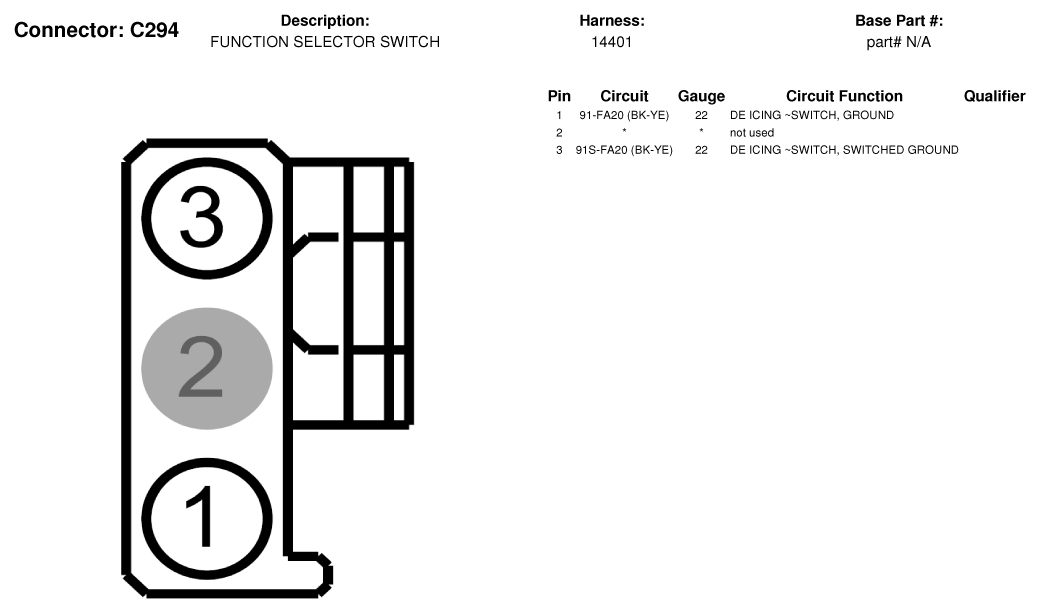

Fig 1: Function Selector Switch Connector End View (C294)
G07337302Courtesy of FORD MOTOR CO.
