Left Front Impact Sensor Connector - C1464

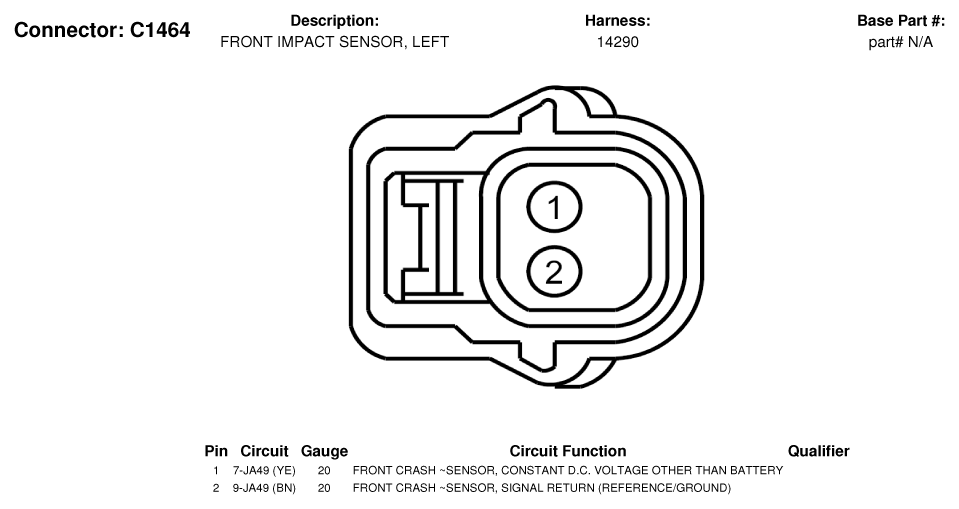

Fig 1: Left Front Impact Sensor Connector End View (C1464)
G07337390Courtesy of FORD MOTOR CO.
