Main Light Switch Connectors - C205
Main Light Switch Connectors - C205

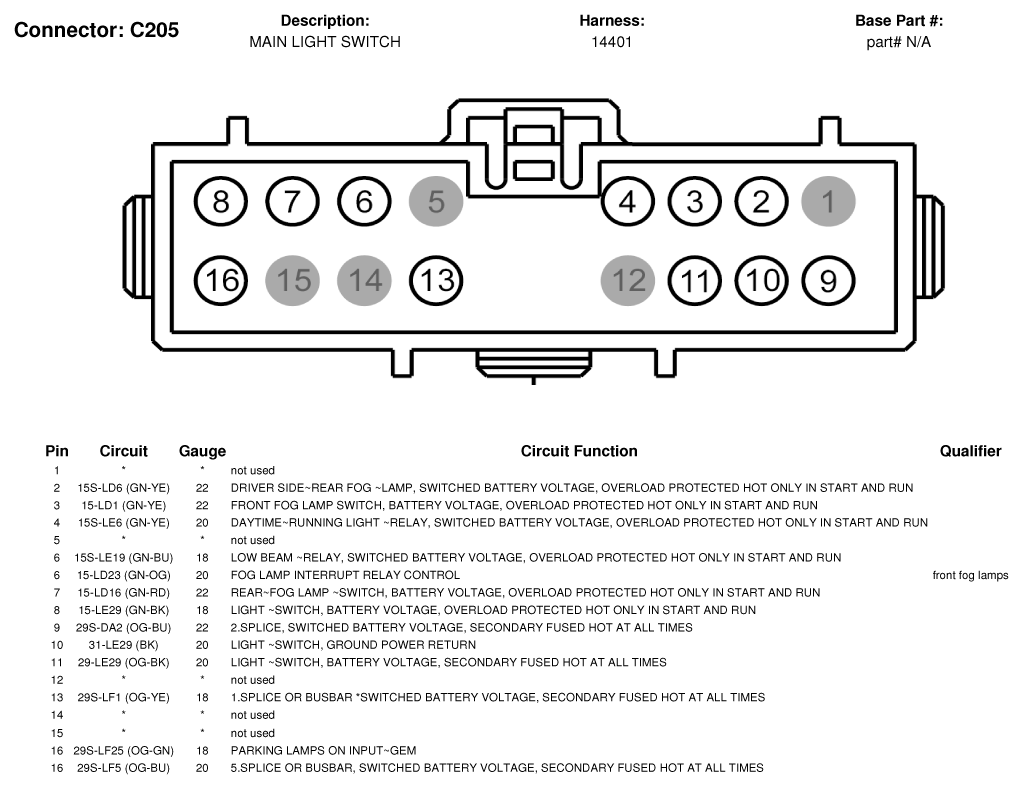

Fig 1: Main Light Switch Connector End View (C205)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
