Transmission Hardware Unit Connector - C199

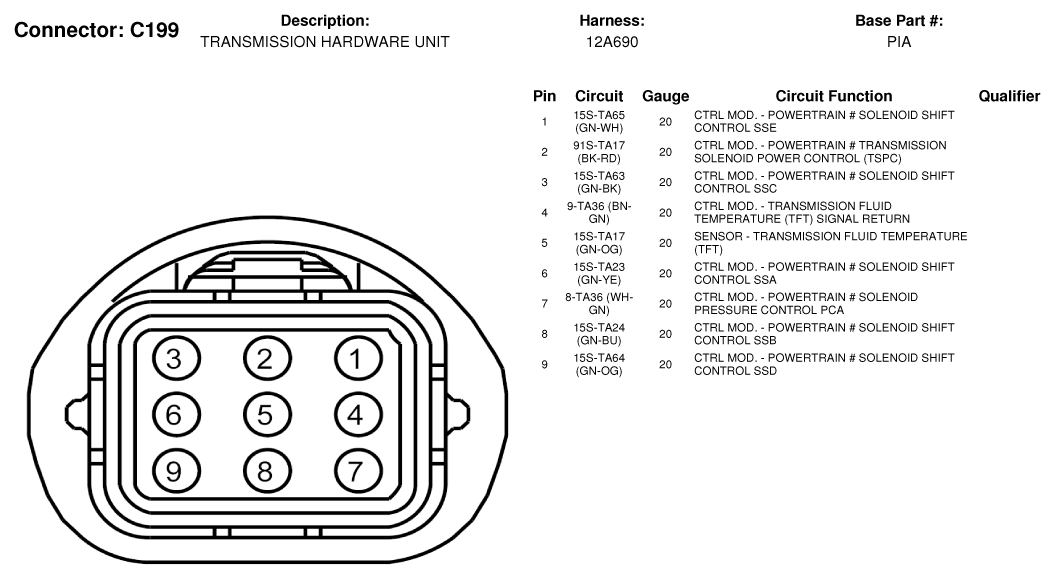

Fig 1: Transmission Hardware Unit Connector End View (C199)
G07337269Courtesy of FORD MOTOR CO.
