Transmission Range Sensor Connector - C167
Transmission Range Sensor Connector - C167

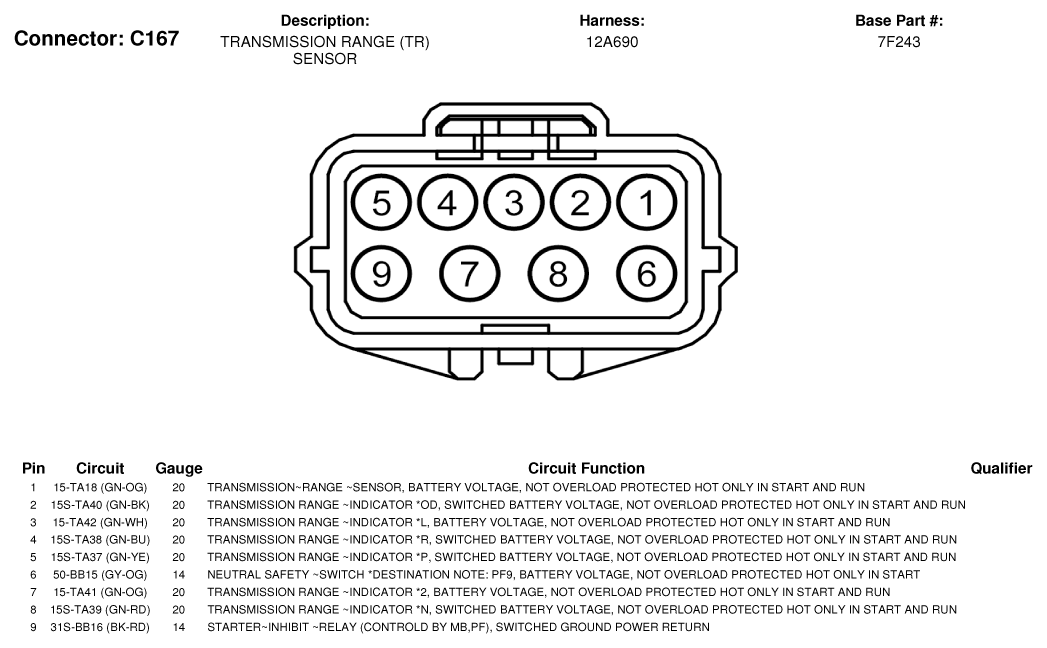

Fig 1: Transmission Range Sensor Connector End View (C167)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
