Snap Rings

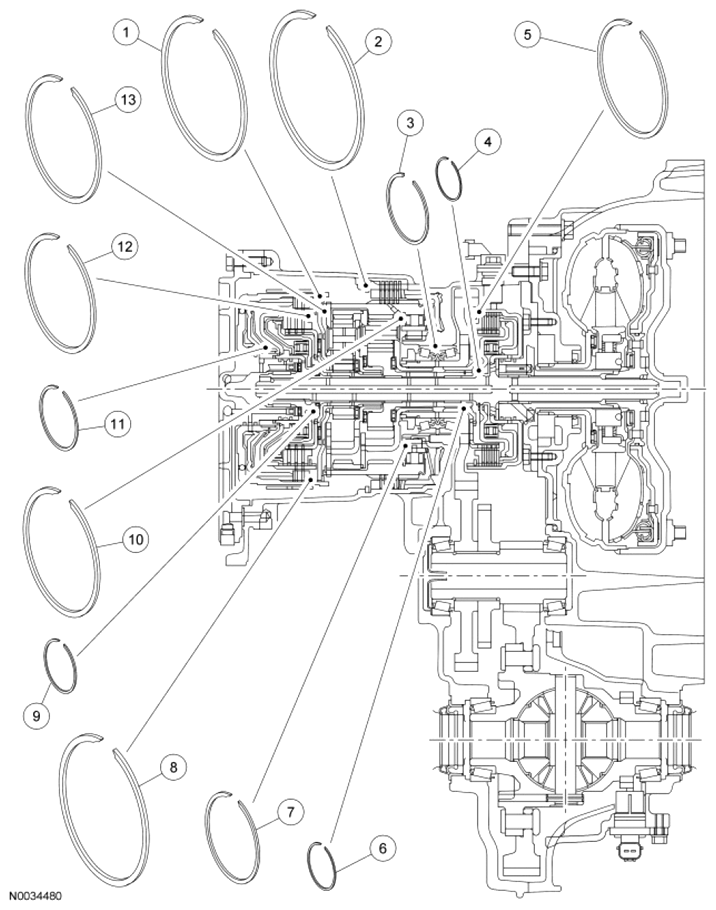

PARTS DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | 7D483 | Ring - reverse clutch retaining |
| 2 | 7D483 | Ring - low/reverse clutch plate retaining (select fit) |
| 3 | 7H106 | Ring - final drive retainer |
| 4 | 7H365 | Ring - forward clutch balance piston |
| 5 | 7D483 | Ring - forward/direct clutch plate retaining (select fit) |
| 6 | 7D483 | Snap ring - front sun gear |
| 7 | 7D483 | Ring - low One-Way Clutch (OWC) retaining |
| 8 | 7D483 | Ring - reverse clutch retaining (select fit) |
| 9 | 7H363 | Snap ring - direct clutch balance piston |
| 10 | 7D483 | Ring - forward/direct clutch planet retaining |
| 11 | 7H075 | Ring - reverse clutch spring retaining |
| 12 | 7D483 | Ring - forward/direct clutch plate retaining (select fit) |
| 13 | 7H361 | Snap ring - rear planet assembly |
