Direct Clutch: Disassembly

Remove the direct clutch pressure, friction and steel plates.
1. Remove the retaining ring.
2. Remove the plates.

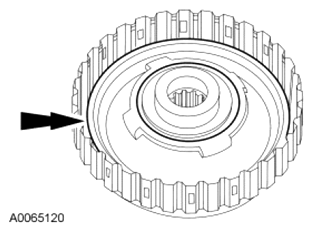

Fig 1: Identifying Direct Clutch Pressure, Friction And Steel Plates With Retaining Ring
Courtesy of FORD MOTOR CO.
Using the Spring Washer Compressor, remove the selective snap ring.

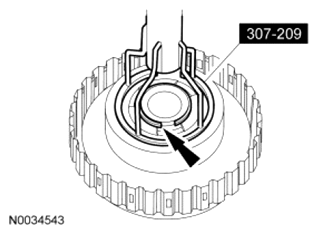

Fig 2: Remove/Install Selective Snap Ring
Courtesy of FORD MOTOR CO.
Remove the direct clutch balance piston.

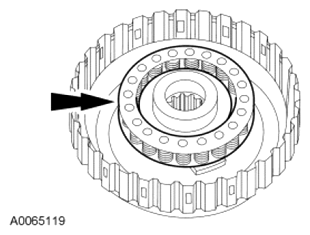

Fig 3: Locating Direct Clutch Balance Piston
Courtesy of FORD MOTOR CO.
Remove the direct clutch return spring.

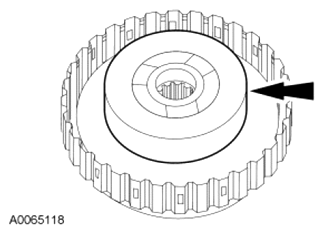

Fig 4: Locating Direct Clutch Return Spring
Courtesy of FORD MOTOR CO.

NOTE: If damage is found on the direct clutch piston seals, install a new direct clutch piston.

Fig 5: Locating Direct Clutch Piston

Courtesy of FORD MOTOR CO.
