Main Control Valve Body: Disassembly

Remove the solenoid body bolts and the solenoid body.

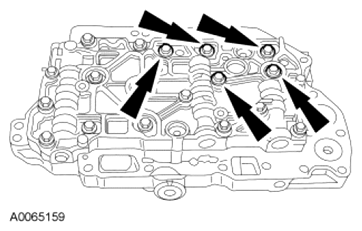

Fig 1: Locating Solenoid Body Bolts
Courtesy of FORD MOTOR CO.
Remove and discard the solenoid body gaskets.

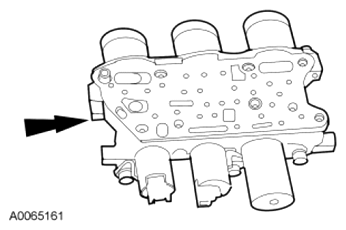

Fig 2: Identifying Solenoid Body Gaskets
Courtesy of FORD MOTOR CO.
Remove and discard the seals.

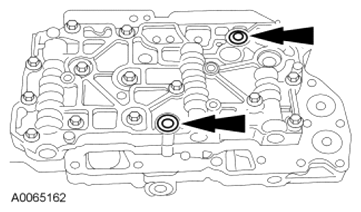

Fig 3: Locating Seals
Courtesy of FORD MOTOR CO.
Disassemble the main control valve body.

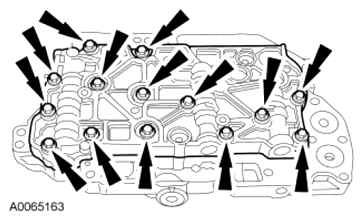

Fig 4: Locating Main Control Valve Body Bolts
Courtesy of FORD MOTOR CO.
