Pump Assembly: Assembly

NOTE: The smaller gear has a recess on both sides.

NOTE: The smaller recess must face away from the torque converter seal.

NOTE: The larger recess, with the beveled edge, must face toward the torque converter.

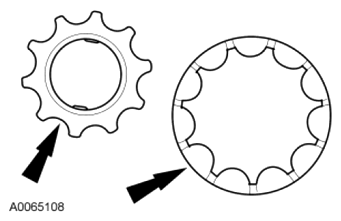

Fig 1: Identifying Pump Gears

Courtesy of FORD MOTOR CO.

Lubricate the gears and thrust washers with clean transmission fluid.
Using the Drive Pinion Oil Seal Installer, install the pump seal.
- Lubricate the gears and thrust washers with transmission fluid.

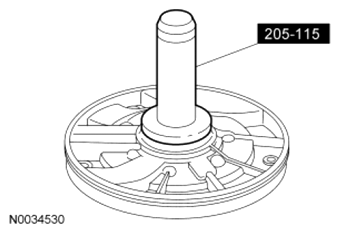

Fig 2: Installing Pump Seal Using Drive Pinion Oil Seal Installer
Courtesy of FORD MOTOR CO.
Install the top portion of the pump and install the pump bolts.
- Tighten to 10 Nm (89 lb-in).
