Reverse Clutch: Assembly

Soak the internal spline clutch plates in clean transmission fluid.
Lubricate and install the reverse clutch piston assembly.

Fig 1: Identifying Reverse Clutch Piston Assembly
Courtesy of FORD MOTOR CO.
Install the reverse clutch piston return spring.

Fig 2: Locating Reverse Clutch Piston Return Spring
Courtesy of FORD MOTOR CO.
Using the Clutch Spring Compressor, install the reverse clutch piston return spring retainer and retainer ring.

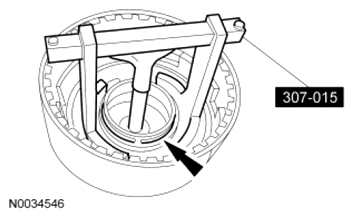

Fig 3: Remove/Install Reverse Clutch Piston Return Spring Retainer Ring And Retainer
Courtesy of FORD MOTOR CO.
Install the reverse clutch pressure, friction and steel plates.
1. Install the plates.
2. Install the retaining ring.
  - Check the clearance. For additional information, refer to SPECIFICATIONS in this service information.

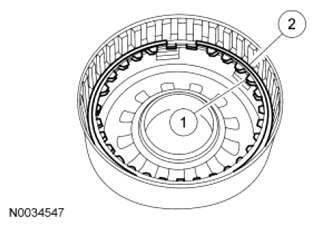

Fig 4: Identifying Reverse Clutch Pressure, Friction And Steel Plates With Retaining Ring
Courtesy of FORD MOTOR CO.
