Reverse Clutch: Disassembly

Remove the reverse clutch pressure, friction and steel plates.
1. Remove the retaining ring.
2. Remove the plates.

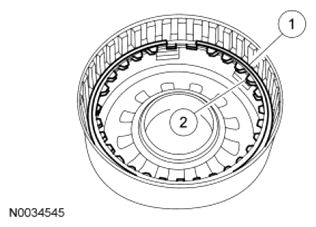

Fig 1: Identifying Reverse Clutch Pressure, Friction And Steel Plates With Retaining Ring
Courtesy of FORD MOTOR CO.
Using the Clutch Spring Compressor, remove the reverse clutch piston return spring retainer ring and retainer.

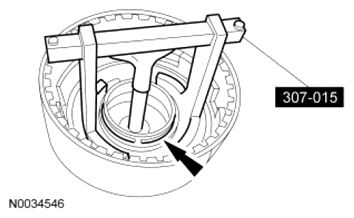

Fig 2: Remove/Install Reverse Clutch Piston Return Spring Retainer Ring And Retainer
Courtesy of FORD MOTOR CO.
Remove the reverse clutch piston return spring.

Fig 3: Locating Reverse Clutch Piston Return Spring
Courtesy of FORD MOTOR CO.
Remove the reverse clutch piston assembly.

Fig 4: Identifying Reverse Clutch Piston Assembly
Courtesy of FORD MOTOR CO.

NOTE: If damage is found to the reverse clutch piston seals, install a new reverse clutch piston.

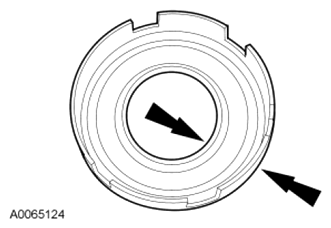

Fig 5: Locating Seal Bore In Drum, Inner And Outer Seals

Courtesy of FORD MOTOR CO.
