Output Shaft Speed (OSS) Sensor: Installation

NOTE: Apply a light coat of clean transmission fluid to the O-ring before installation.

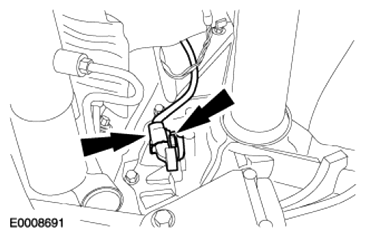

Fig 1: Locating OSS Sensor And Electrical Connector

G07496200

Courtesy of FORD MOTOR CO.

Install the OSS sensor.
- Tighten to 10 Nm (89 lb-in).
- Connect the electrical connector.
Lower vehicle.
Check the transmission fluid level and add transmission fluid as necessary.
Start the engine and move the transaxle range selector lever through all gear positions.
