Transaxle Filler Tube: Installation

Inspect the transaxle filler tube O-ring for damage before installing the transaxle filler tube. If the transaxle filler tube O-ring is damaged, install a new transaxle filler tube O-ring. Lubricate the transaxle filler tube O-ring with clean transmission fluid.

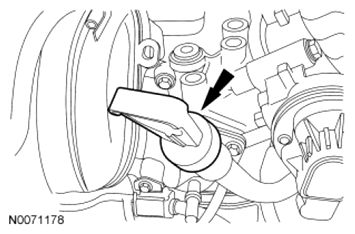

Fig 1: Locating Transaxle Filler Tube O-Ring
Courtesy of FORD MOTOR CO.
Install the transaxle filler tube and transaxle filler tube bolt.
- Tighten to 8 Nm (71 lb-in).

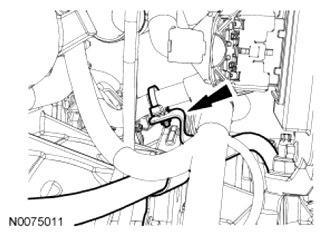

Fig 2: Locating Transaxle Filler Tube And Transaxle Filler Tube Bolt
Courtesy of FORD MOTOR CO.
Install the power steering hose retainers and the wiring harness retainer on the transaxle filler tube.

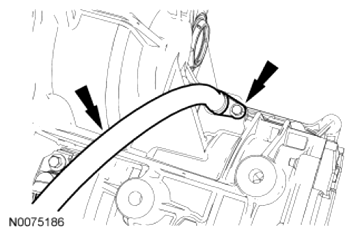

Fig 3: Locating Power Steering Hose Retainers And Wiring Harness Retainer
Courtesy of FORD MOTOR CO.
Connect the bottom PCM electrical connector.

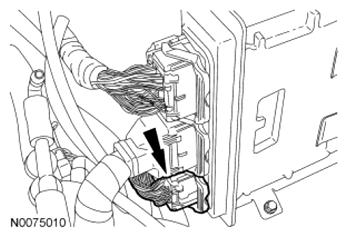

Fig 4: Locating Bottom PCM Electrical Connector
Courtesy of FORD MOTOR CO.
Connect the throttle control electrical connector.

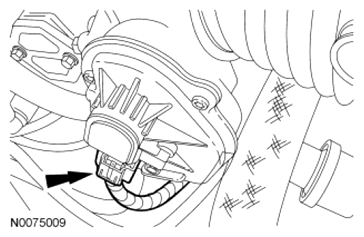

Fig 5: Locating Throttle Control Electrical Connector
Courtesy of FORD MOTOR CO.
Install the transaxle filler tube bolt.
- Tighten to 8 Nm (71 lb-in).

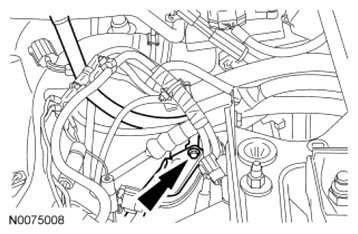

Fig 6: Locating Transaxle Filler Tube Bolt
Courtesy of FORD MOTOR CO.
Install the transmission fluid level indicator.

Fig 7: Locating Transmission Fluid Level Indicator
Courtesy of FORD MOTOR CO.
Install the ACL and outlet pipe assembly. For additional information, refer to INTAKE AIR DISTRIBUTION SYSTEM & INTAKE AIR FILTERING SYSTEM article.
