Transmission Fluid Pan: Installation

NOTE: Do not use more than the specified amount of sealer on the pan or internal transaxle damage could occur.

Fig 1: Identifying Bead Thick Of Sealer Applying Area On Transmission Fluid Pan

G07496177

Courtesy of FORD MOTOR CO.

Apply a bead 1.5 mm (0.06 in) thick of sealer to the transmission fluid pan.
Install the transmission fluid pan.
- Tighten to 10 Nm (89 lb-in).

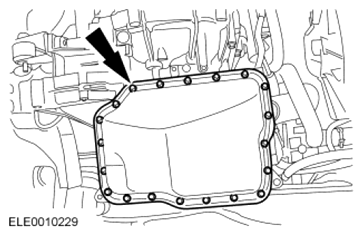

Fig 2: Identifying Transmission Fluid Pan Bolts
Courtesy of FORD MOTOR CO.
Lower the vehicle.
Fill the transaxle with clean transmission fluid.
