Selector Lever Bezel: Removal

  1. Remove the selector lever knob. For additional information, refer to SELECTOR LEVER KNOB  in this service information.
    2. NOTE: Selector lever assembly removed for clarity.

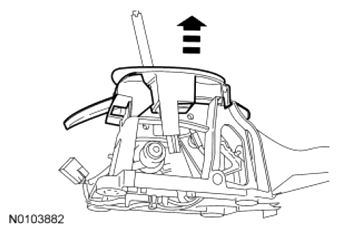

    Fig 1: Removing Selector Lever Bezel
    G07496716Courtesy of FORD MOTOR CO.
  2. Remove the selector lever bezel.
    • Unclip the bezel.
    • Unclip the lamp.
