Parking Aid Module Connector - C2023

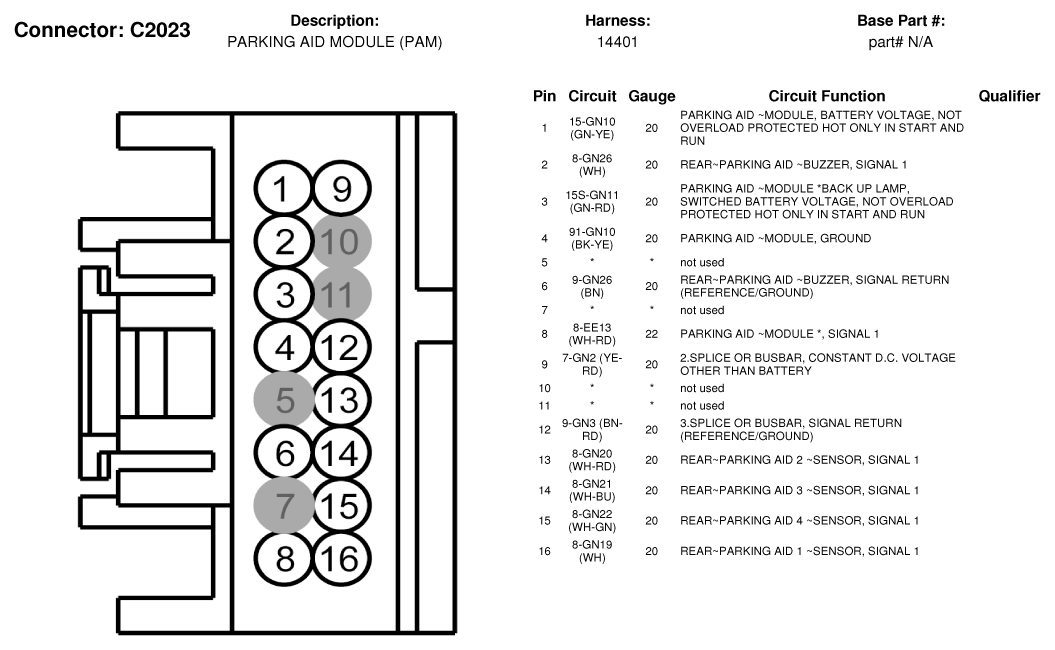

Fig 1: Parking Aid Module Connector End View (C2023)
G07337395Courtesy of FORD MOTOR CO.
