Audio System_Navigation: Notes

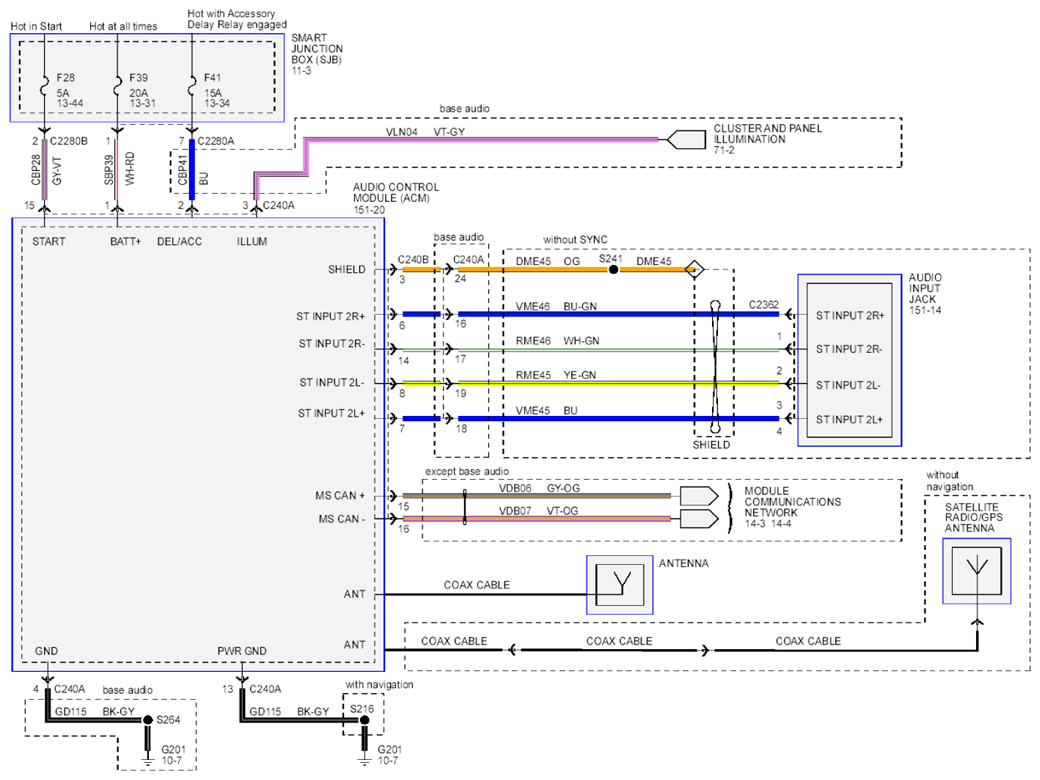

Fig 1: Audio System Navigation Circuit Diagram
G07892039Courtesy of FORD MOTOR CO.
