Removal And Installation: Generator: Notes
WARNING: This page is about a different variant/trim than selected.
NOTE:

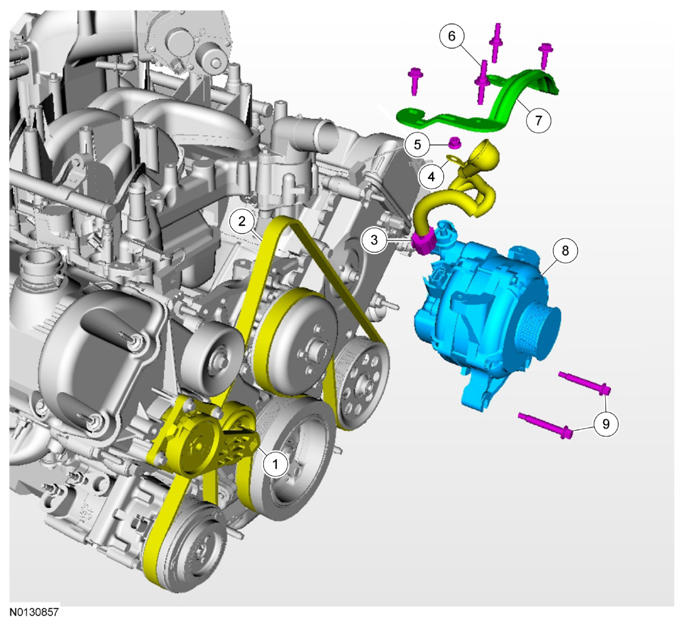

5.4L with A/C shown in illustration, other engines similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | 6B209 | Accessory drive belt tensioner |
| 2 | 8620 | Accessory drive belt |
| 3 | - | Generator electrical connector (part of 14305) |
| 4 | - | Generator B+ terminal (part of 14305) |
| 5 | W711953 | Generator B+ terminal nut - 17 Nm (150 lb-in) |
| 6 | N807309 | Generator bracket bolt (4 required) - 10 Nm (89 lb-in) |
| 7 | 10153 | Generator bracket |
| 8 | 10300 | Generator |
| 9 | N811334 | Generator bolt (2 required) - 25 Nm (18 lb-ft) |
