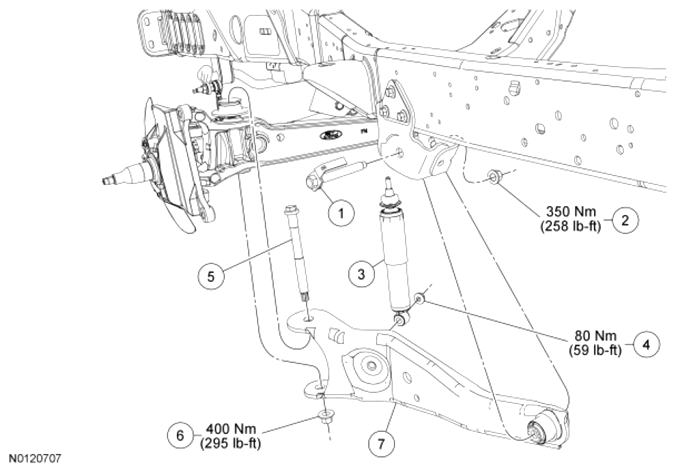

Radius Arm: Notes
WARNING: This page is about a different variant/trim than selected.
Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
W714042 |
Radius arm rearward flag bolt |
| 2 |
N807659 |
Radius arm rearward nut |
| 3 |
18045 |
Shock absorber |
| 4 |
N806085 |
Shock absorber lower nut |
| 5 |
N806592 |
Radius arm-to-axle bolt |
| 6 |
N805028 |
Radius arm-to-axle nut |
| 7 |
3A292 LH/ 3405 RH |
Radius arm |
