Smart Junction Box (SJB): Notes
WARNING: This page is about a different variant/trim than selected.
NOTE:
Steering column opening cover removed for clarity.

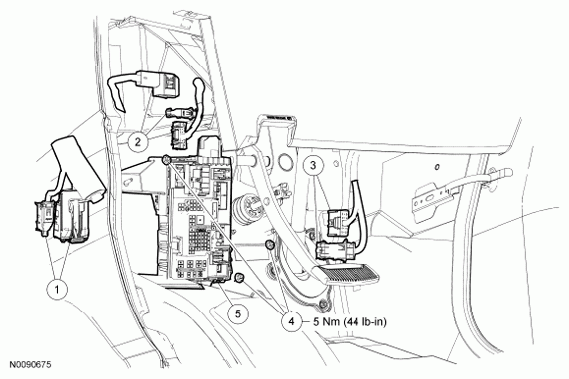

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Smart Junction Box (SJB) electrical connectors (2 required) (part of 14405) |
| 2 | - | SJB electrical connectors (3 required) (part of 12A581) |
| 3 | - | SJB electrical connectors (2 required) (part of 14401) |
| 4 | W707137-S437 | SJB nuts (3 required) |
| 5 | 15K602 | SJB |
