Headlamp Assembly: Notes
WARNING: This page is about a different variant/trim than selected.

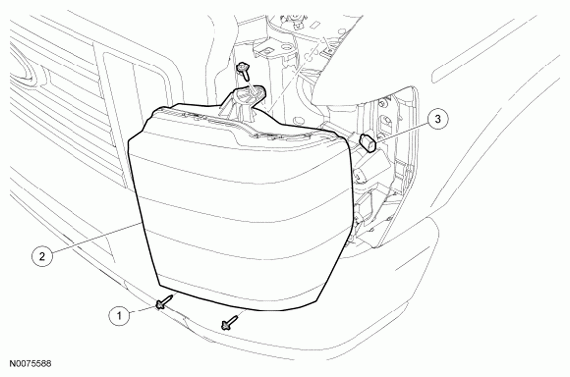

Aerodynamic
| Item | Part Number | Description |
|---|---|---|
| 1 | N606677 | Headlamp assembly bolts (3 required) |
| 2 | 13008 | Headlamp assembly |
| 3 | - | Headlamp assembly electrical connectors (part of 14290) |

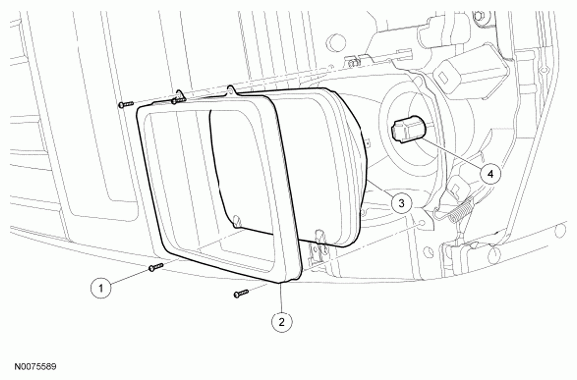

Sealed Beam
| Item | Part Number | Description |
|---|---|---|
| 1 | 390723 | Headlamp retaining ring screws (4 required) |
| 2 | 13015 | Headlamp retaining ring |
| 3 | 13007 | Headlamp assembly |
| 4 | - | Headlamp assembly electrical connector (part of 14290) |
