Driveshaft Center Bearing: Notes

WARNING: This page is about a different variant/trim than selected.

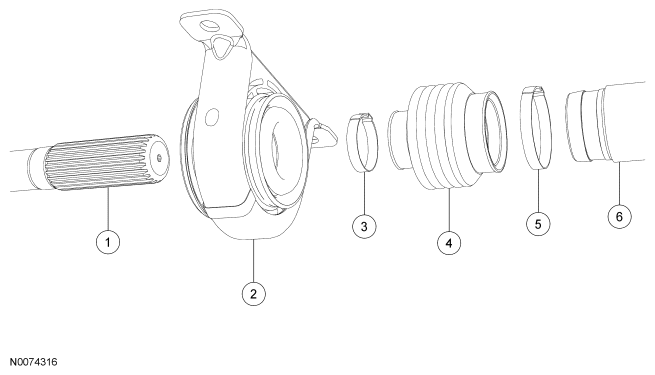

Fig 1: Identifying Driveshaft Center Bearing Components

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	4602	Coupling shaft
2	4800	Driveshaft center bearing assembly
3	4K227	Driveshaft slip-yoke boot clamp
4	4421	Driveshaft slip-yoke boot
5	4K227	Driveshaft slip-yoke boot clamp
6	4841	Driveshaft slip-yoke
