Driveshaft Slip Yoke: Notes
WARNING: This page is about a different variant/trim than selected.
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| Premium Long-Life Grease XG-1-C or XG-1-K (US); CXG-1-C (Canada) |
ESA-M1C75-B |

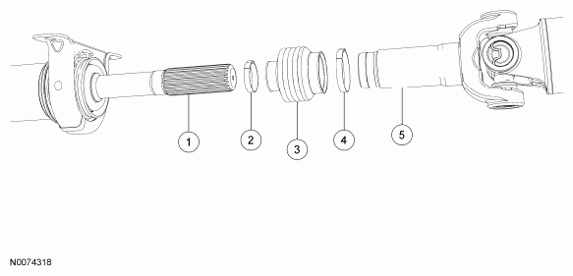

| Item | Part Number | Description |
|---|---|---|
| 1 | 4602 | Coupling shaft |
| 2 | 4K227 | Driveshaft slip yoke boot clamp |
| 3 | 4221 | Driveshaft slip yoke boot |
| 4 | 4K227 | Driveshaft slip yoke boot clamp |
| 5 | 4841 | Driveshaft slip-yoke |
