Passenger Air Bag Module: Notes
WARNING: This page is about a different variant/trim than selected.
Courtesy of FORD MOTOR CO.

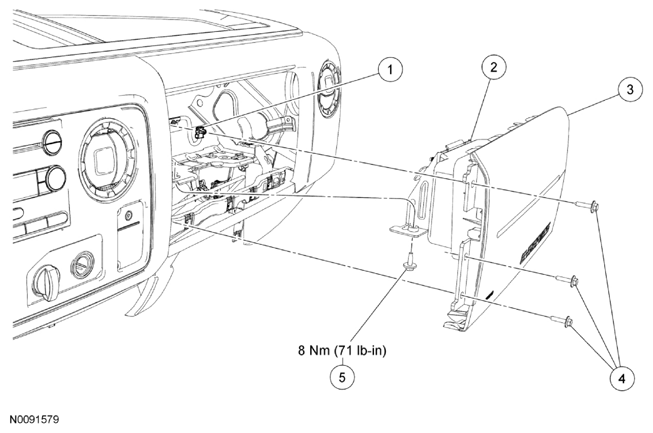

| Item |
Part Number |
Description |
| 1 |
- |
Electrical connector (part of 14401) |
| 2 |
044A74 |
Passenger air bag module assembly |
| 3 |
04338 |
Passenger air bag trim cover |
| 4 |
W707628 |
Passenger air bag trim cover bolts (3 required) |
| 5 |
W505422 |
Passenger air bag module-to-cross beam bolt (2 required) |
