Internet Connection Manager
WARNING: This page is about a different variant/trim than selected.
- Turn the in-dash computer on.
- Press SETTINGS, then SYSTEM SETTINGS, then scroll down and select the VIEW icon next to the SPRINT CONNECTION MANAGER selection.

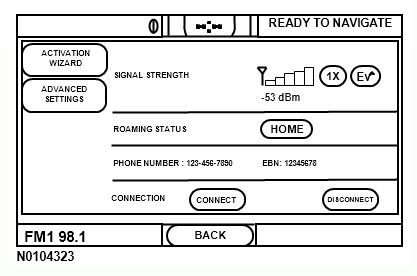

- The following information (relevant to service) is displayed:
| Display | Description |
|---|---|
| ACTIVATION WIZARD | Pressing this icon navigates to another screen where the modem-antenna connection can be re-activated, if it is disconnected. |
| SIGNAL STRENGTH | Current modem-antenna signal strength. |
| ESN | Modem-antenna Electronic Serial Number (ESN). |
| CONNECTION | Pressing CONNECT will connect the modem-antenna to the wireless network, if it is currently disconnected. A newly installed modem-antenna must be connected through the internet connection manager, then activated by the customer. |
