Compressor to Condenser Discharge Line: Notes
WARNING: This page is about a different variant/trim than selected.
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| Motorcraft® PAG Refrigerant Compressor Oil YN-12-D |
WSH-M1C231-B |

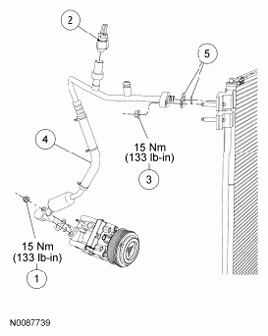

| Item | Part Number | Description |
|---|---|---|
| 1 | W520413 | A/C compressor discharge fitting nut |
| 2 | - | High-pressure cutoff switch electrical connector (part of 12A581) |
| 3 | W520413 | Condenser inlet fitting nut |
| 4 | 19972 | Compressor-to-condenser discharge line |
| 5 | 19B596 | O-ring seal and gasket seal kit (2 required) |
