Section 8 (OEM Component Harness Location Views)
›
Component Location Views
Component Location Views
WARNING:
This page is about a different variant/trim than selected.

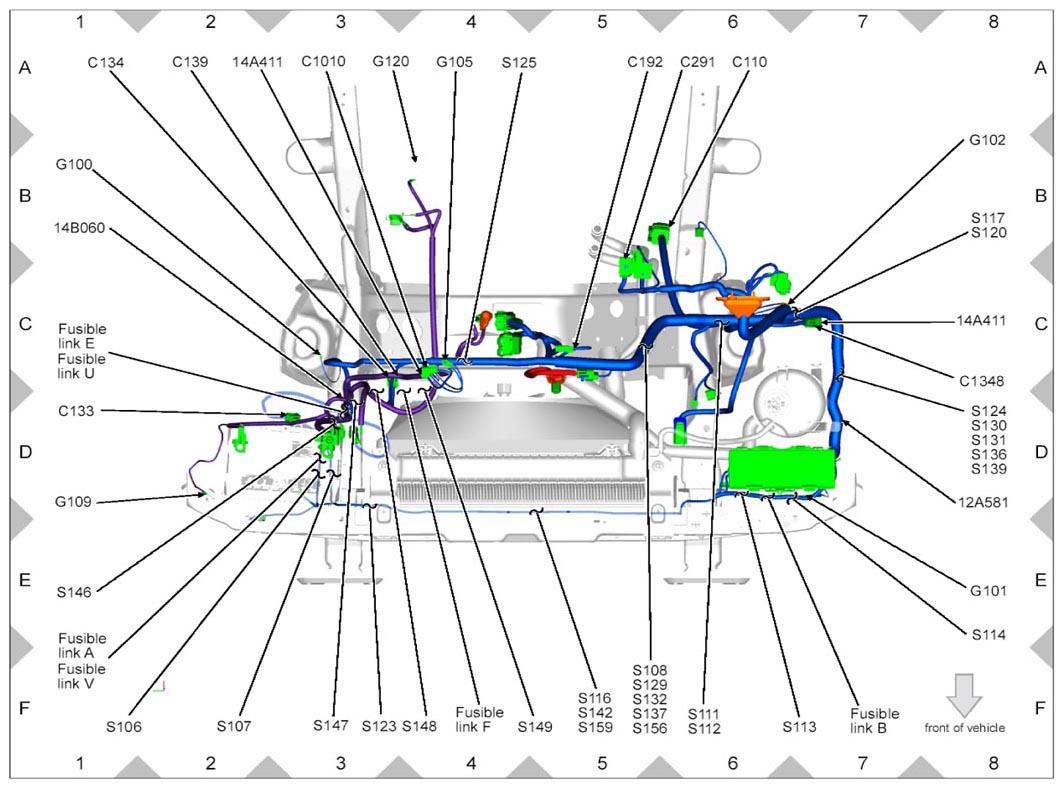

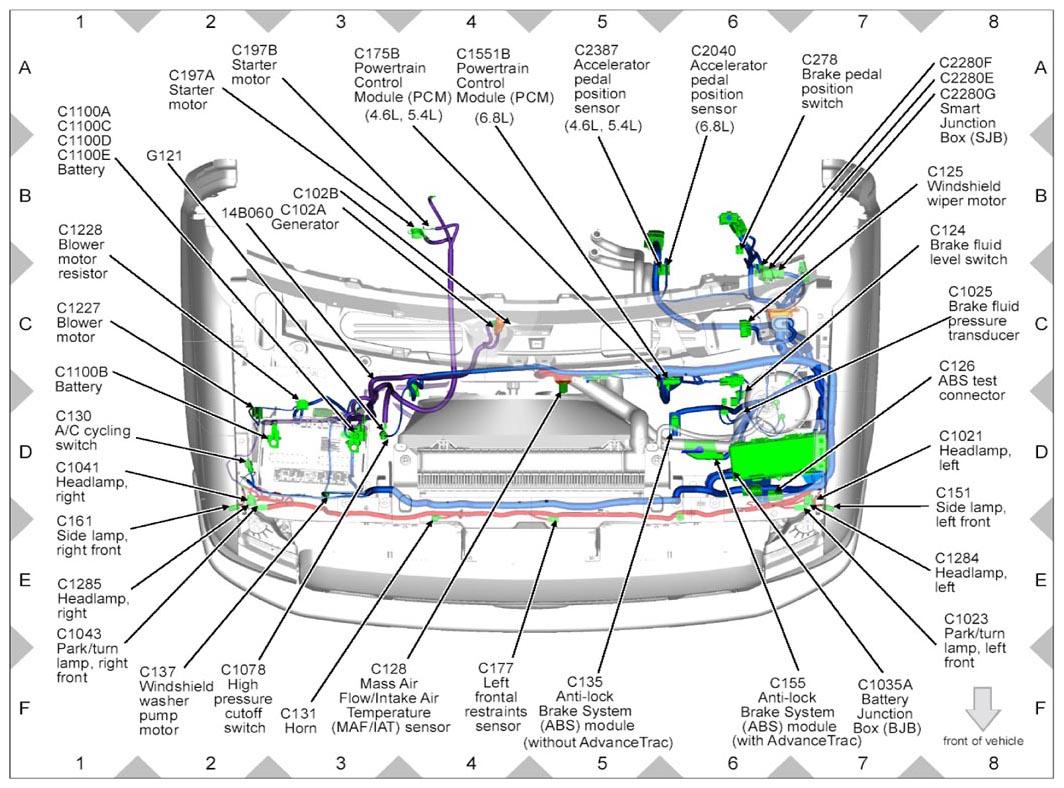

Fig 1: Engine Compartment Wiring Harness Location (1 Of 4)
Courtesy of FORD MOTOR CO.

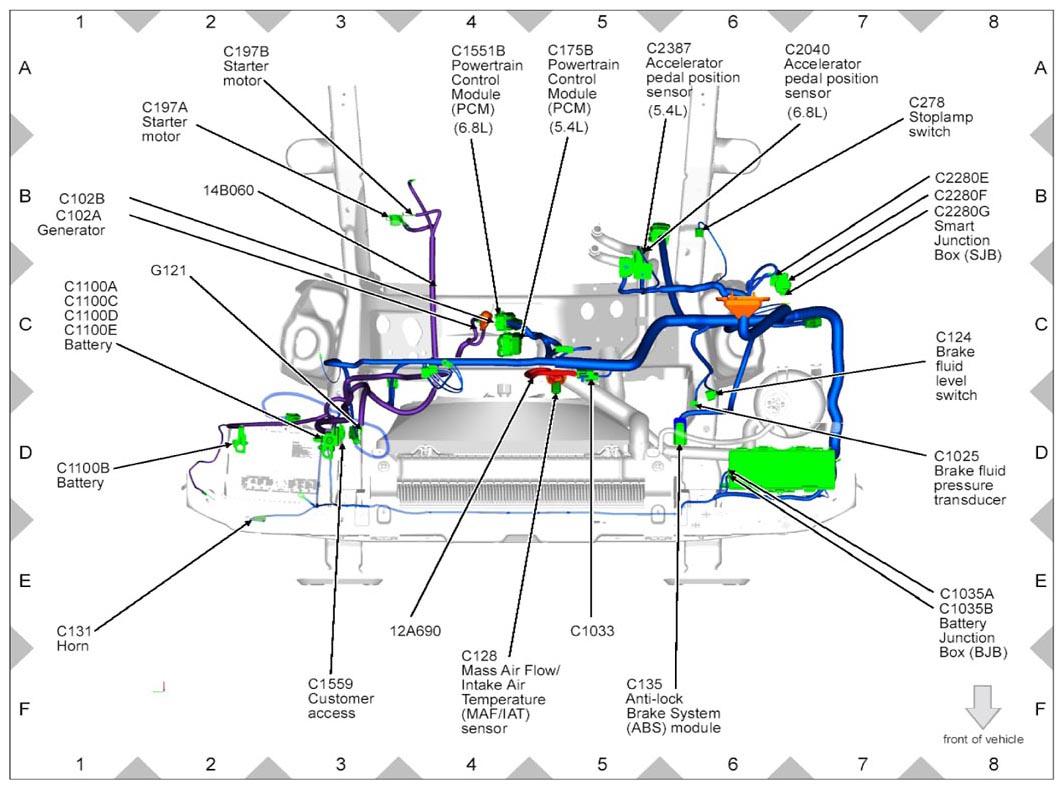

Fig 2: Engine Compartment Wiring Harness Location (2 Of 4)
Courtesy of FORD MOTOR CO.

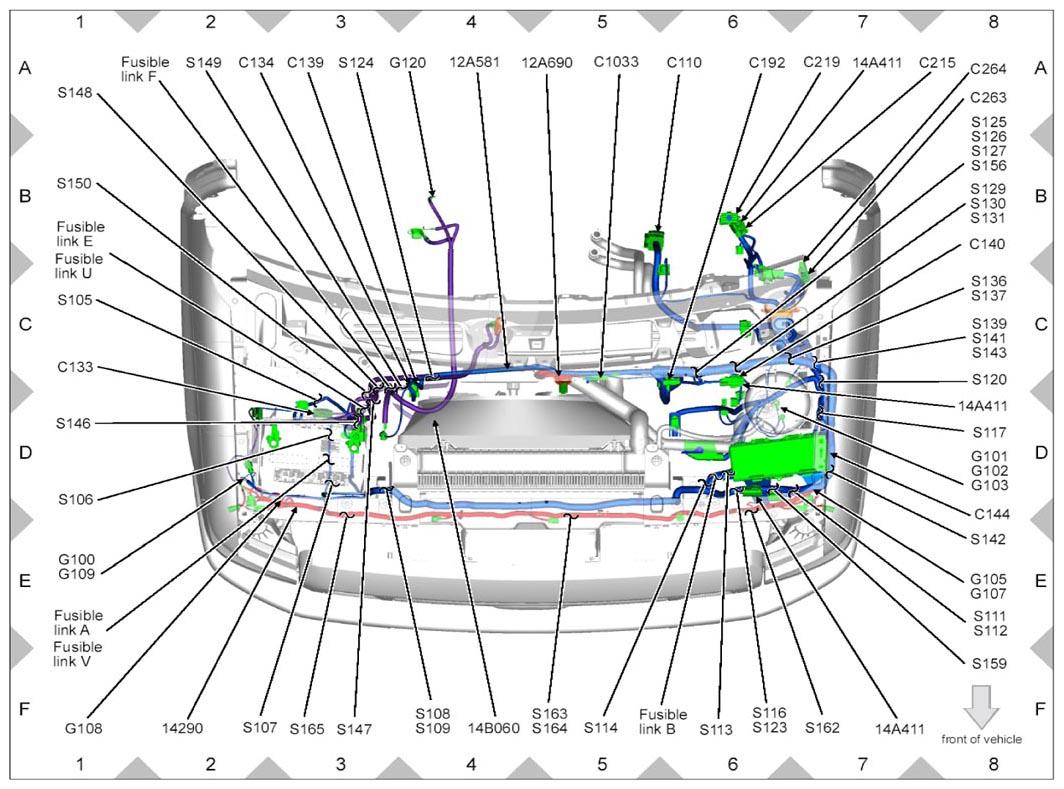

Fig 3: Engine Compartment Wiring Harness Location (3 Of 4)
Courtesy of FORD MOTOR CO.
Fig 4: Engine Compartment Wiring Harness Location (4 Of 4)
Courtesy of FORD MOTOR CO.

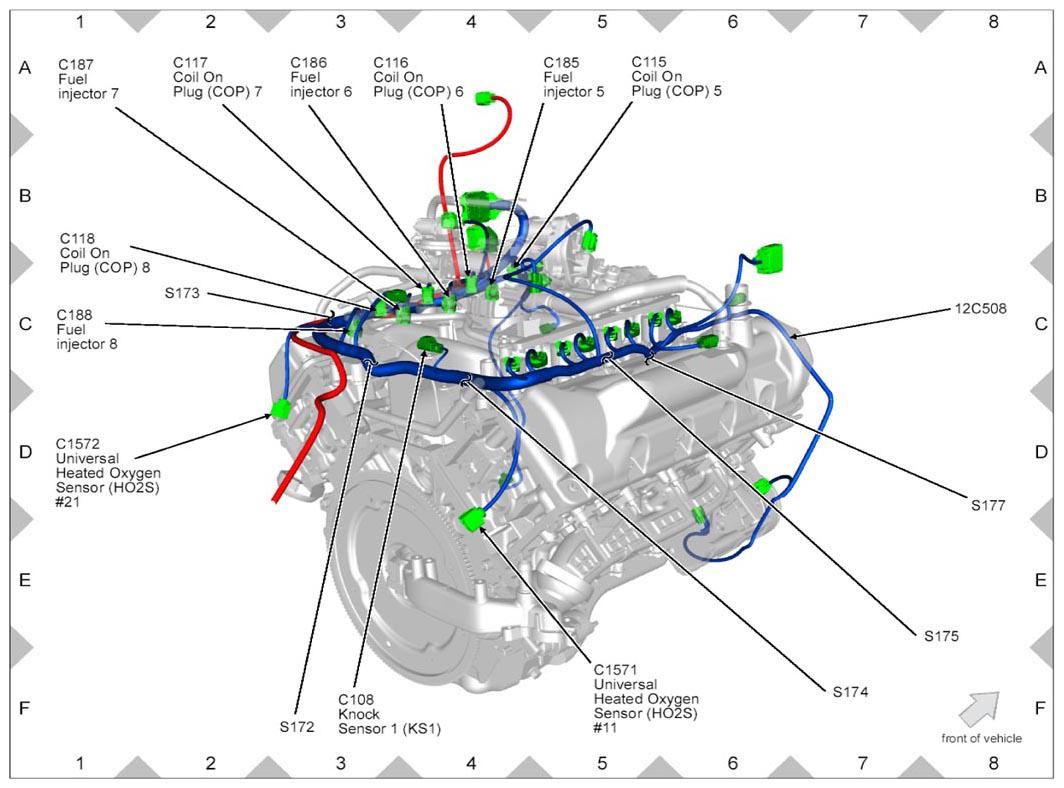

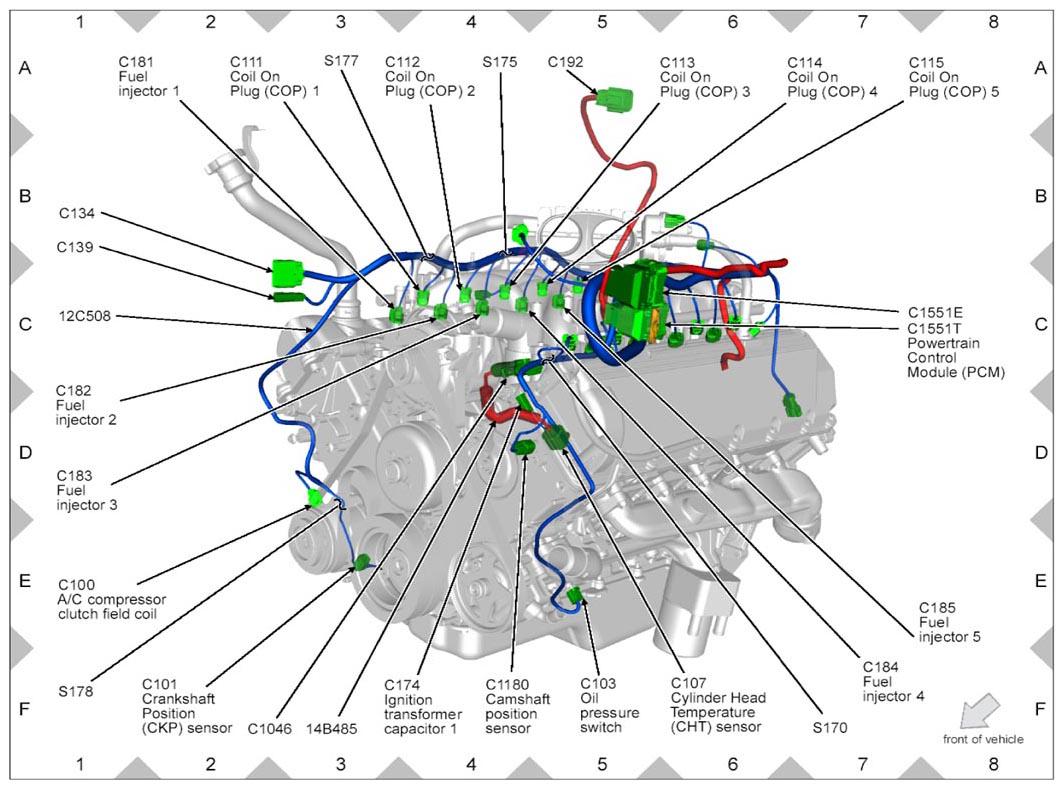

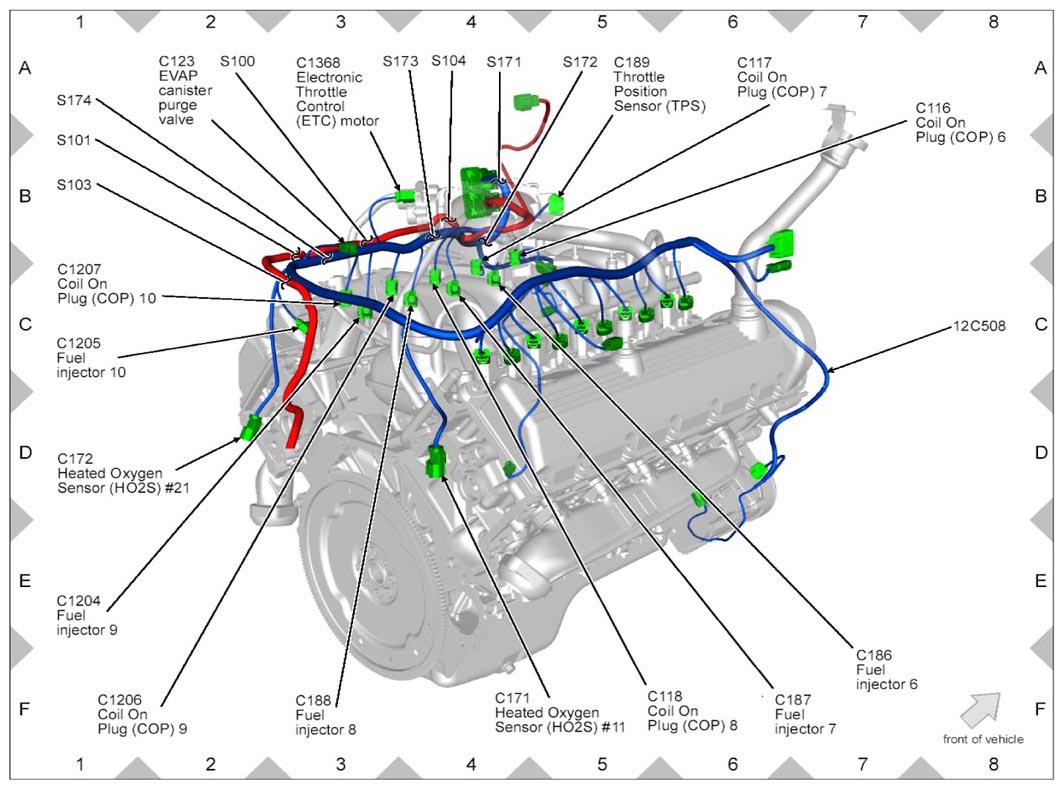

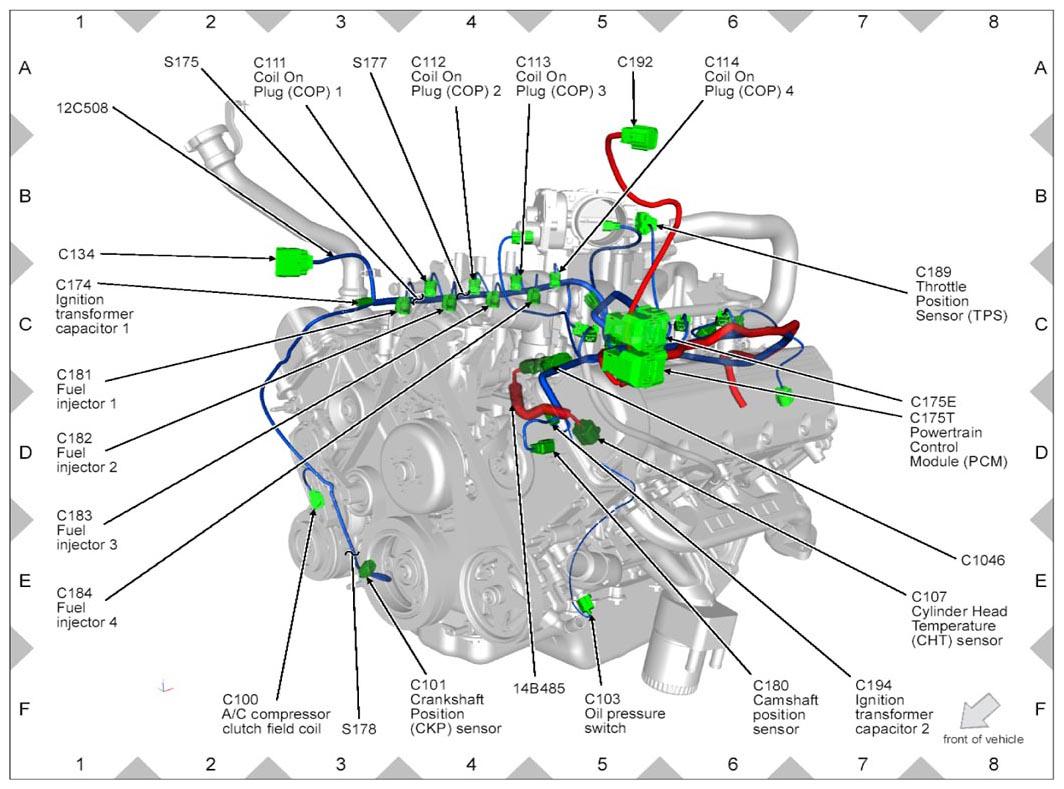

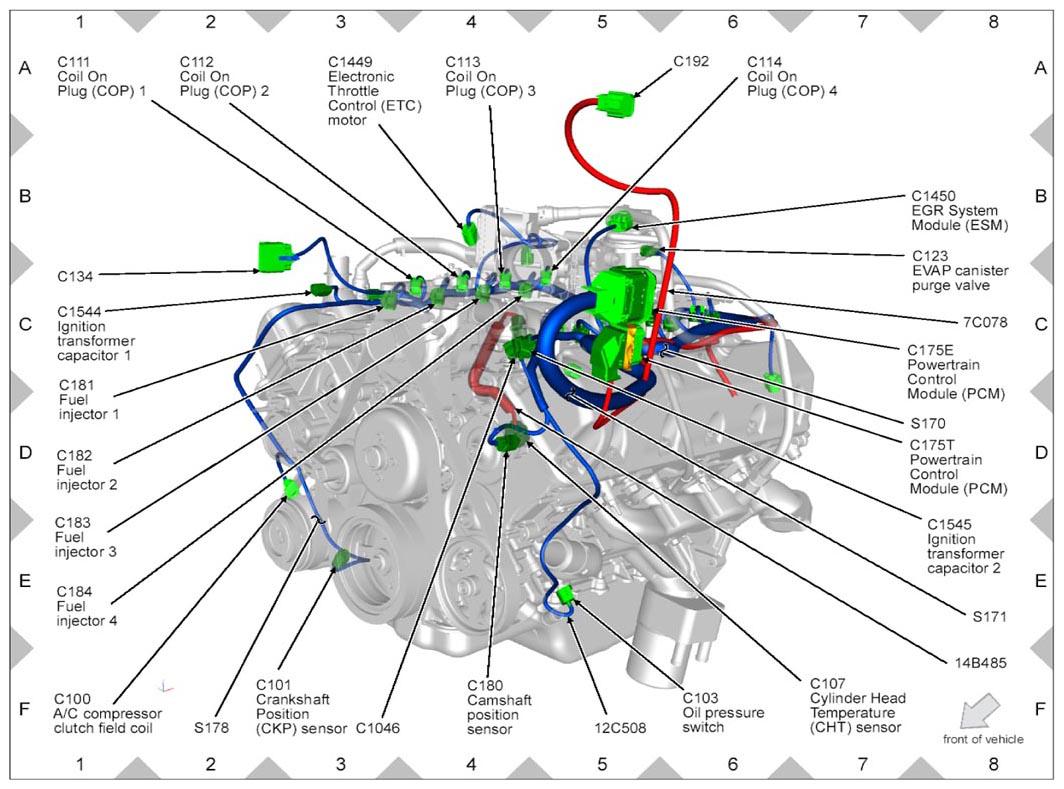

Fig 5: Engine Wiring Harness Location (1 Of 6)
Courtesy of FORD MOTOR CO.
Fig 6: Engine Wiring Harness Location (2 Of 6)
Courtesy of FORD MOTOR CO.

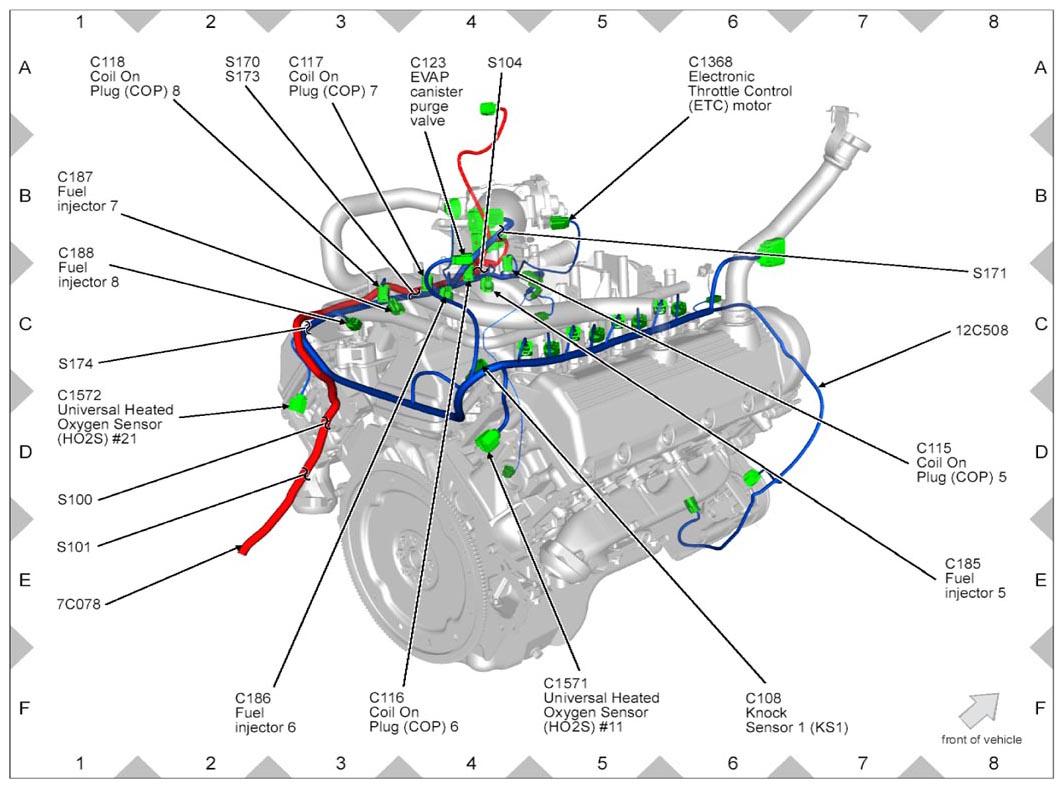

Fig 7: Engine Wiring Harness Location (3 Of 6)
Courtesy of FORD MOTOR CO.
Fig 8: Engine Wiring Harness Location (4 Of 6)
Courtesy of FORD MOTOR CO.
Fig 9: Engine Wiring Harness Location (5 Of 6)
Courtesy of FORD MOTOR CO.
Fig 10: Engine Wiring Harness Location (6 Of 6)
Courtesy of FORD MOTOR CO.

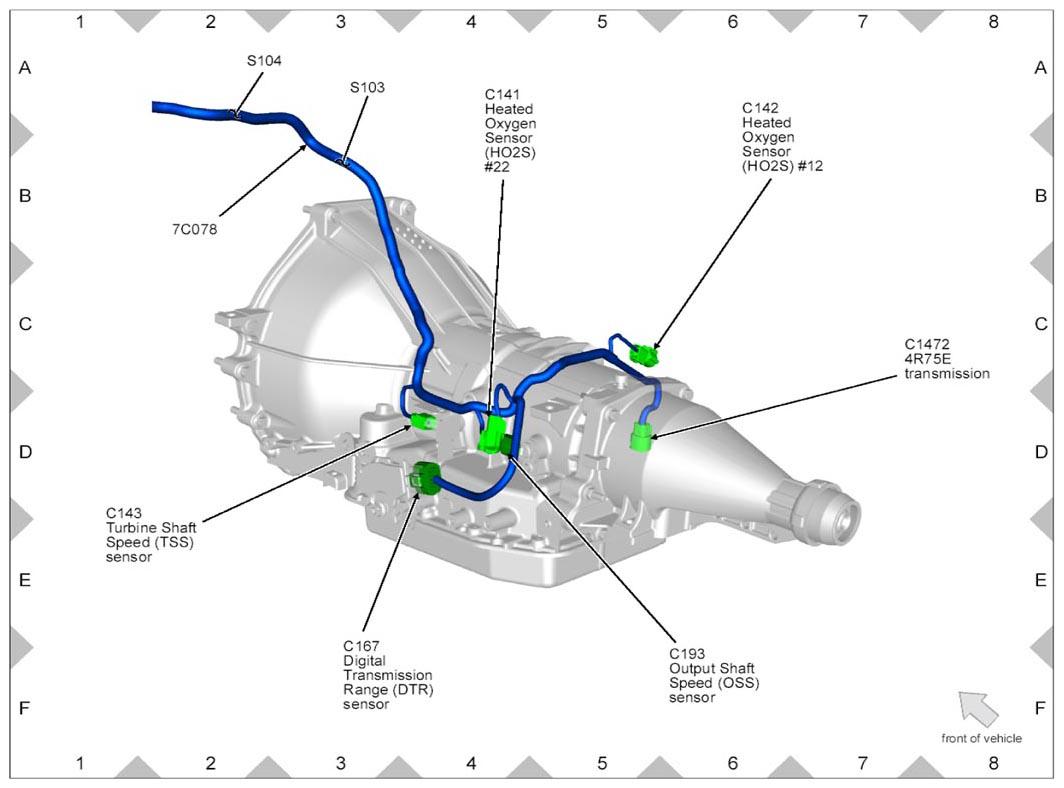

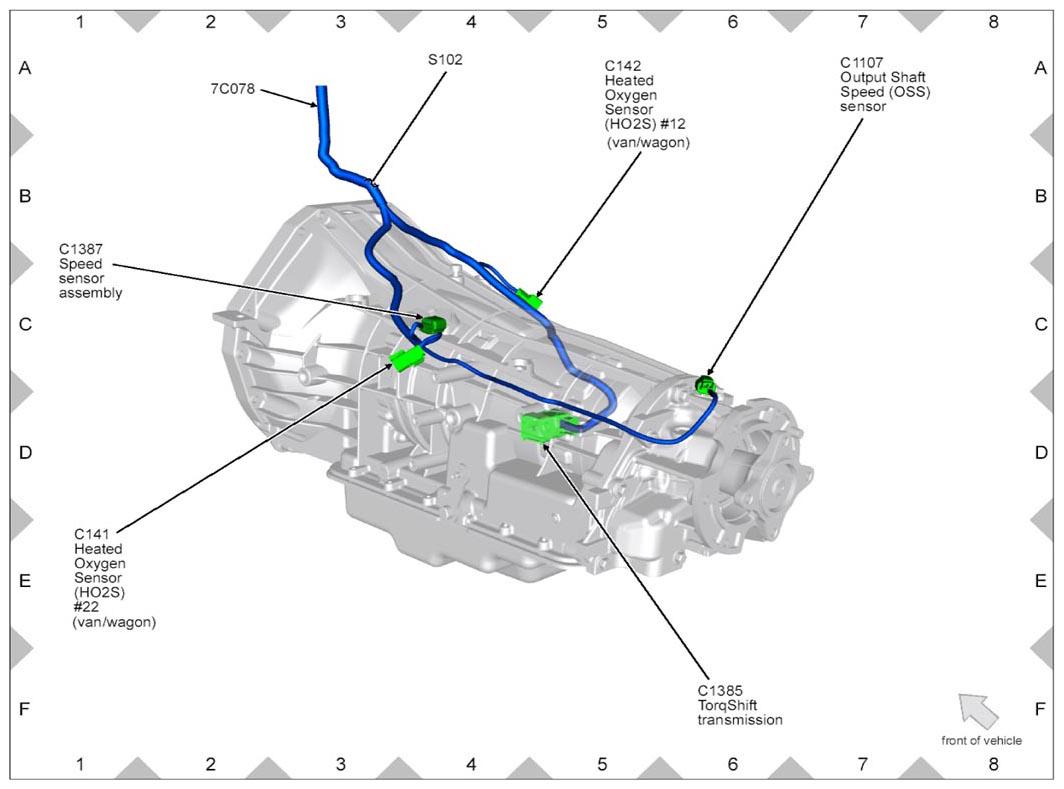

Fig 11: Automatic Transmission Wiring Harness Location (1 Of 2)
Courtesy of FORD MOTOR CO.
Fig 12: Automatic Transmission Wiring Harness Location (2 Of 2)
Courtesy of FORD MOTOR CO.

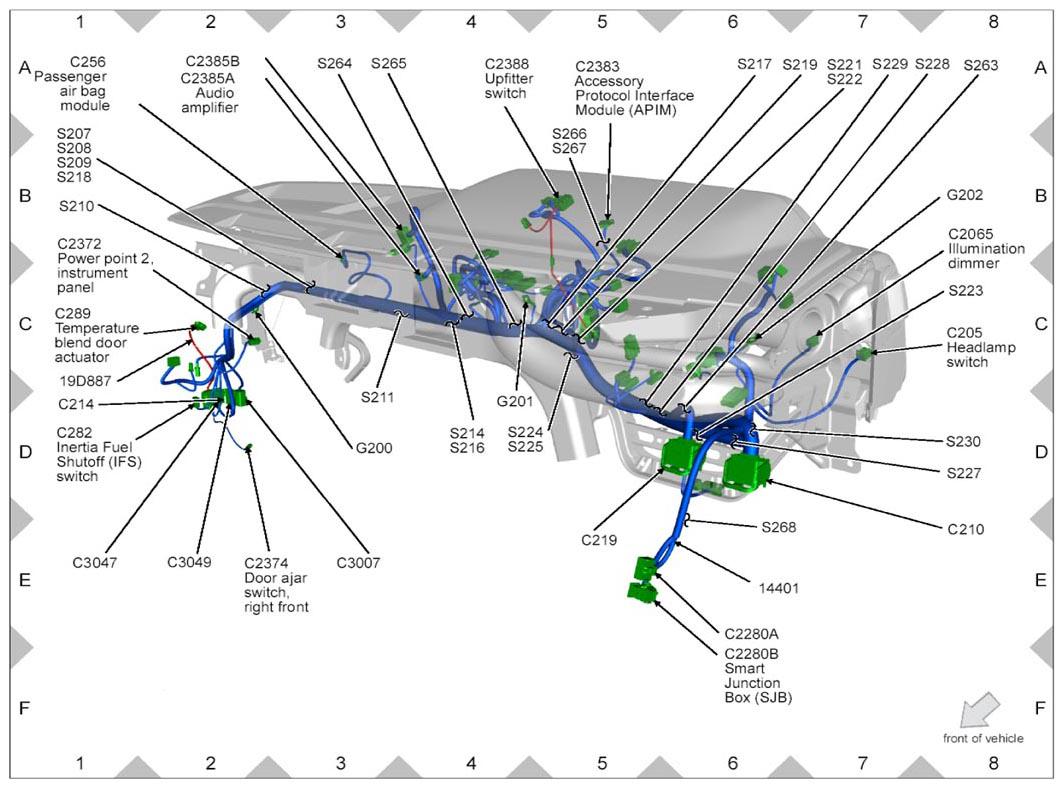

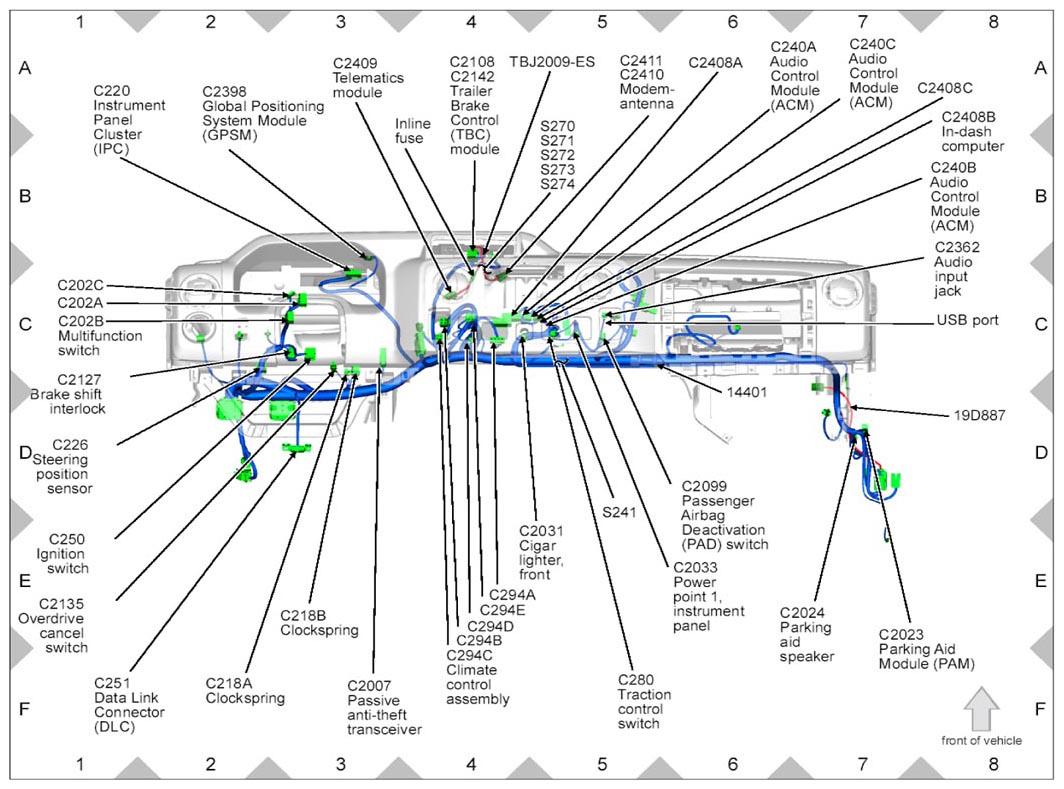

Fig 13: Dashboard Wiring Harness Location (1 Of 2)
Courtesy of FORD MOTOR CO.
Fig 14: Dashboard Wiring Harness Location (2 Of 2)
Courtesy of FORD MOTOR CO.

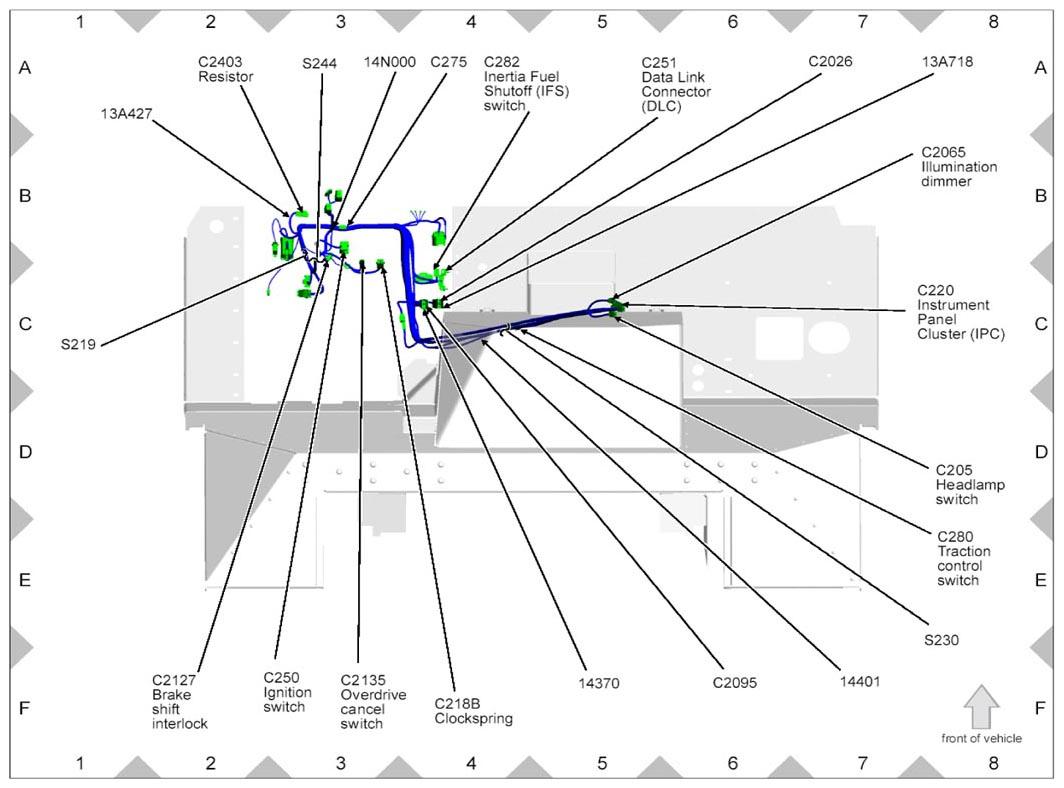

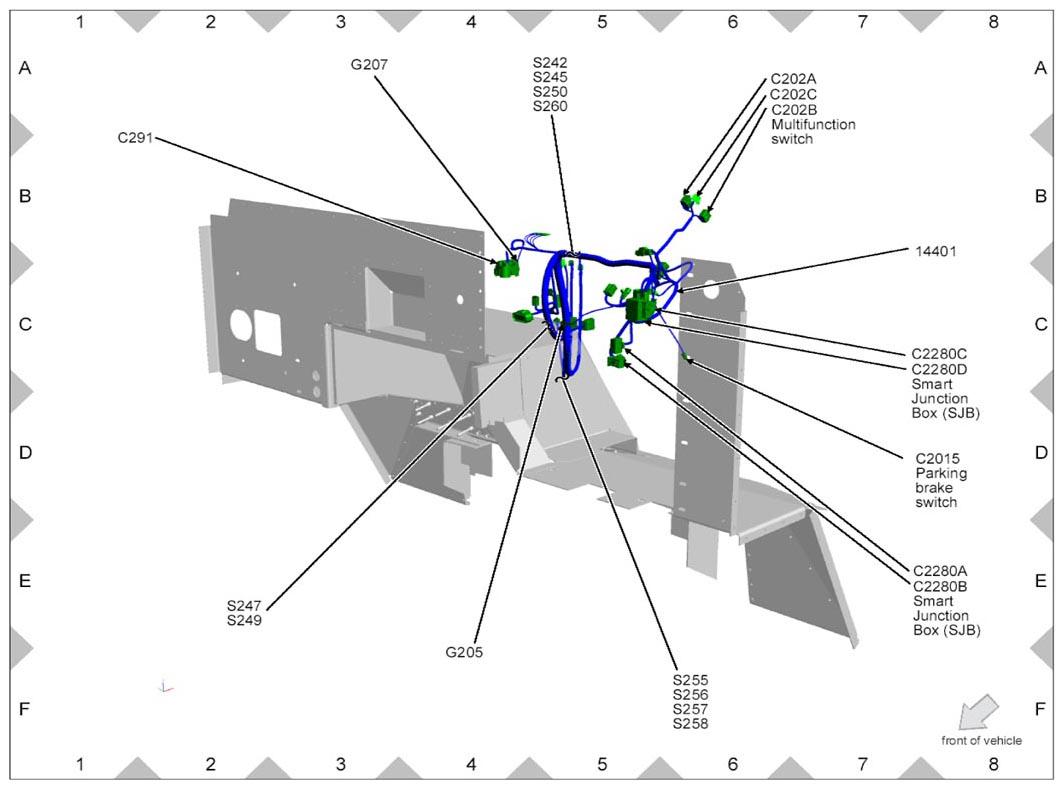

Fig 15: Under Dashboard Panel Wiring Harness Location (1 Of 2)
Courtesy of FORD MOTOR CO.
Fig 16: Under Dashboard Panel Wiring Harness Location (2 Of 2)
Courtesy of FORD MOTOR CO.

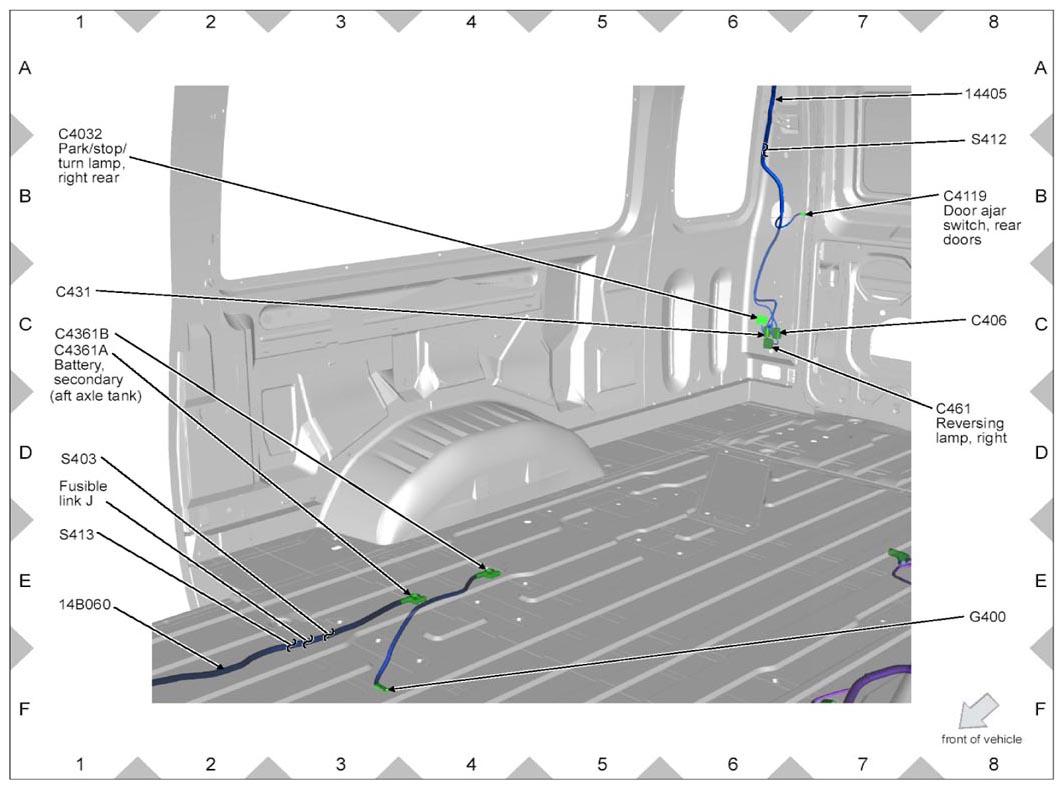

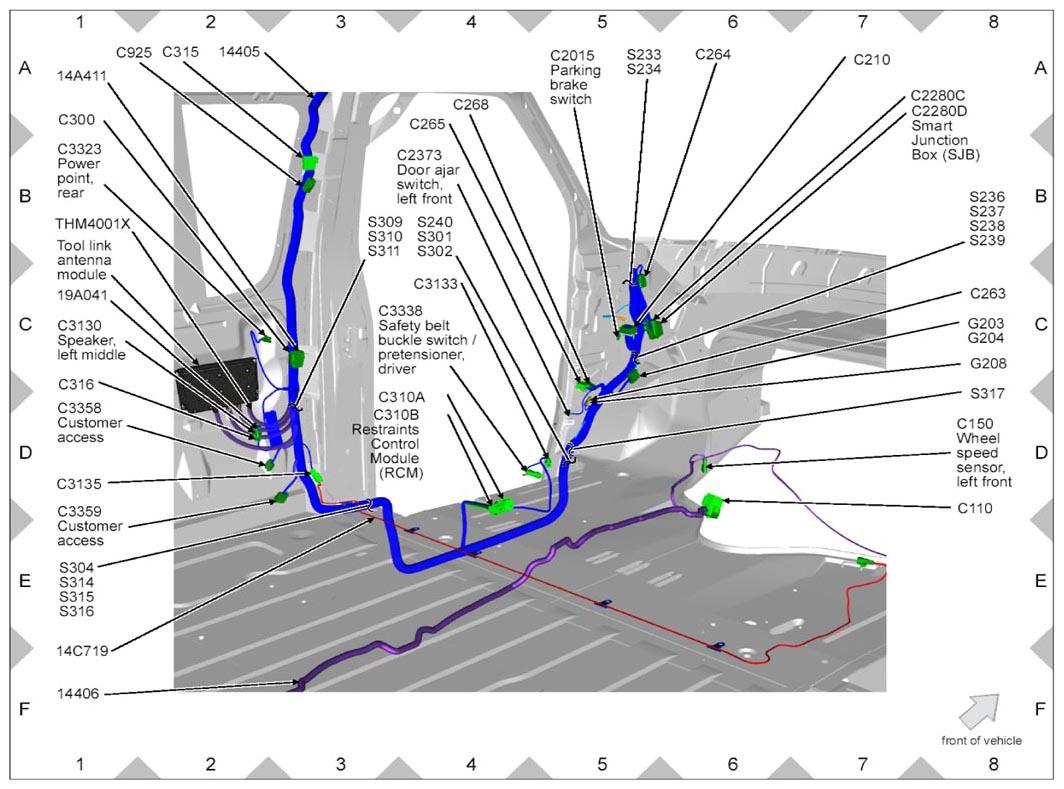

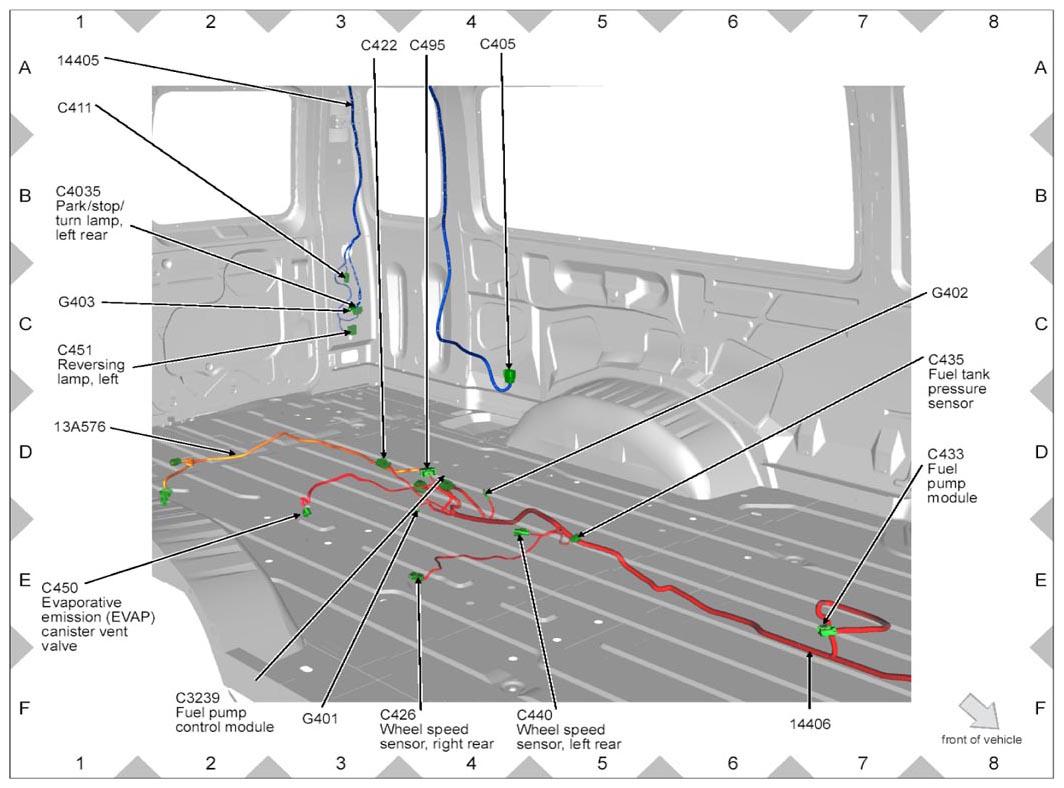

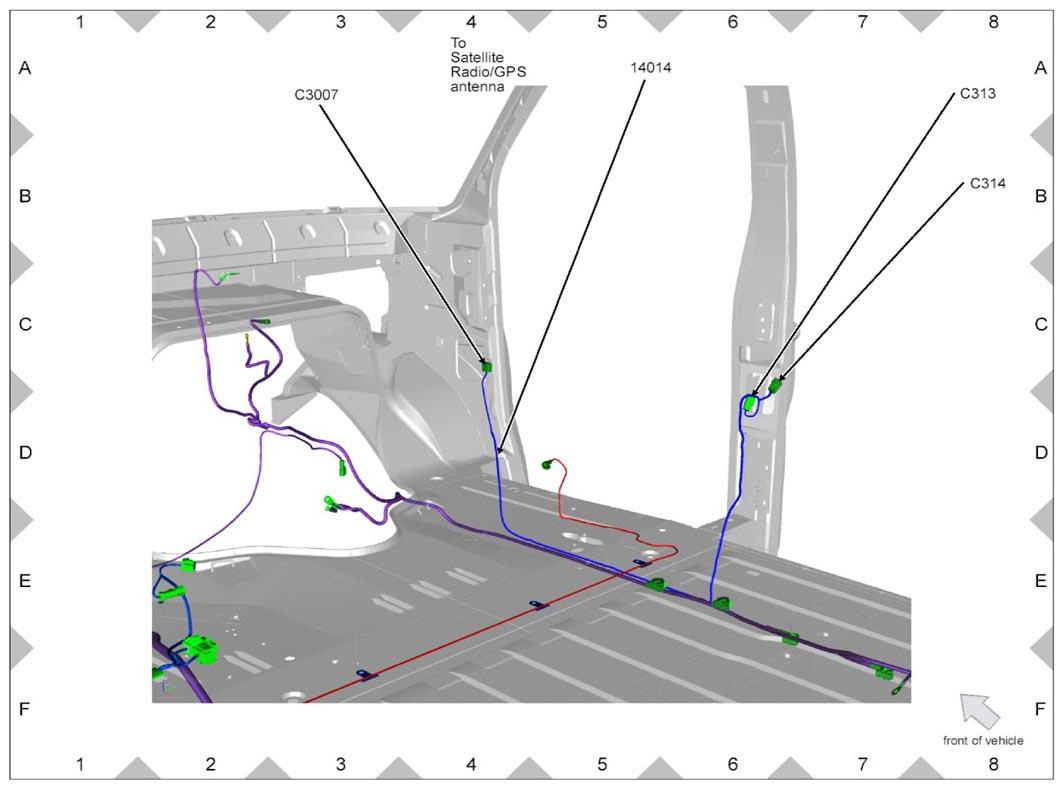

Fig 17: Body Panel Wiring Harness Location (1 Of 5)
Courtesy of FORD MOTOR CO.

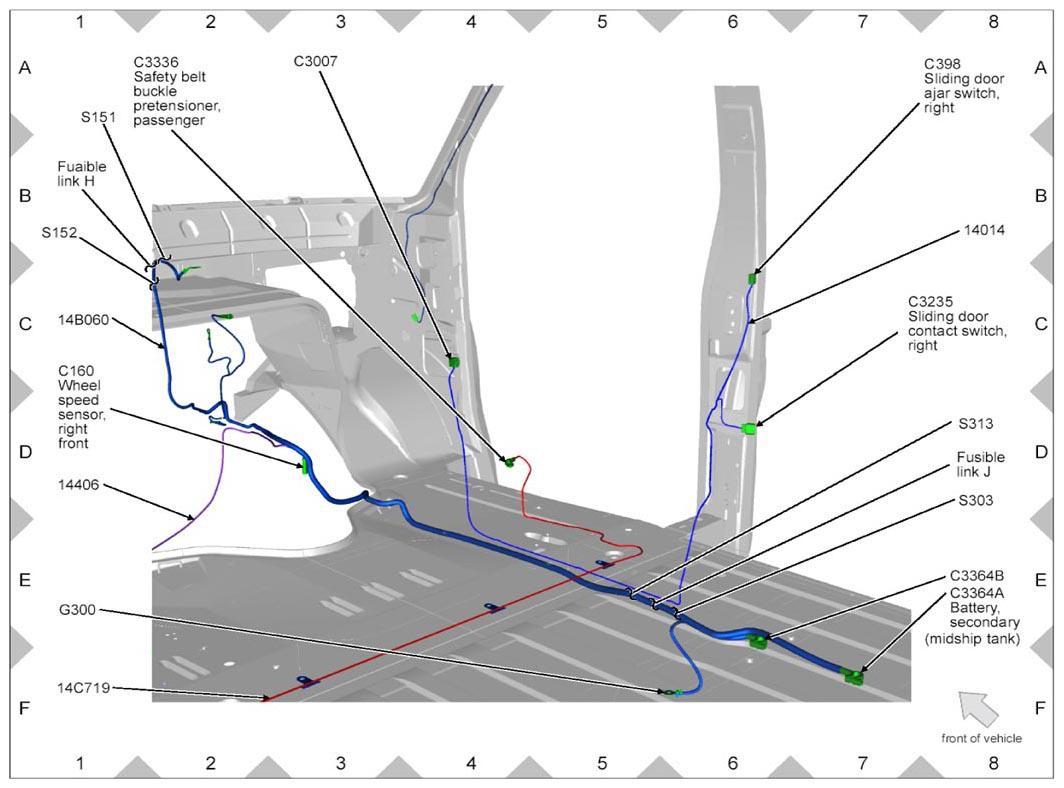

Fig 18: Body Panel Wiring Harness Location (2 Of 5)
Courtesy of FORD MOTOR CO.
Fig 19: Body Panel Wiring Harness Location (3 Of 5)
Courtesy of FORD MOTOR CO.
Fig 20: Body Panel Wiring Harness Location (4 Of 5)
Courtesy of FORD MOTOR CO.
Fig 21: Body Panel Wiring Harness Location (5 Of 5)
Courtesy of FORD MOTOR CO.

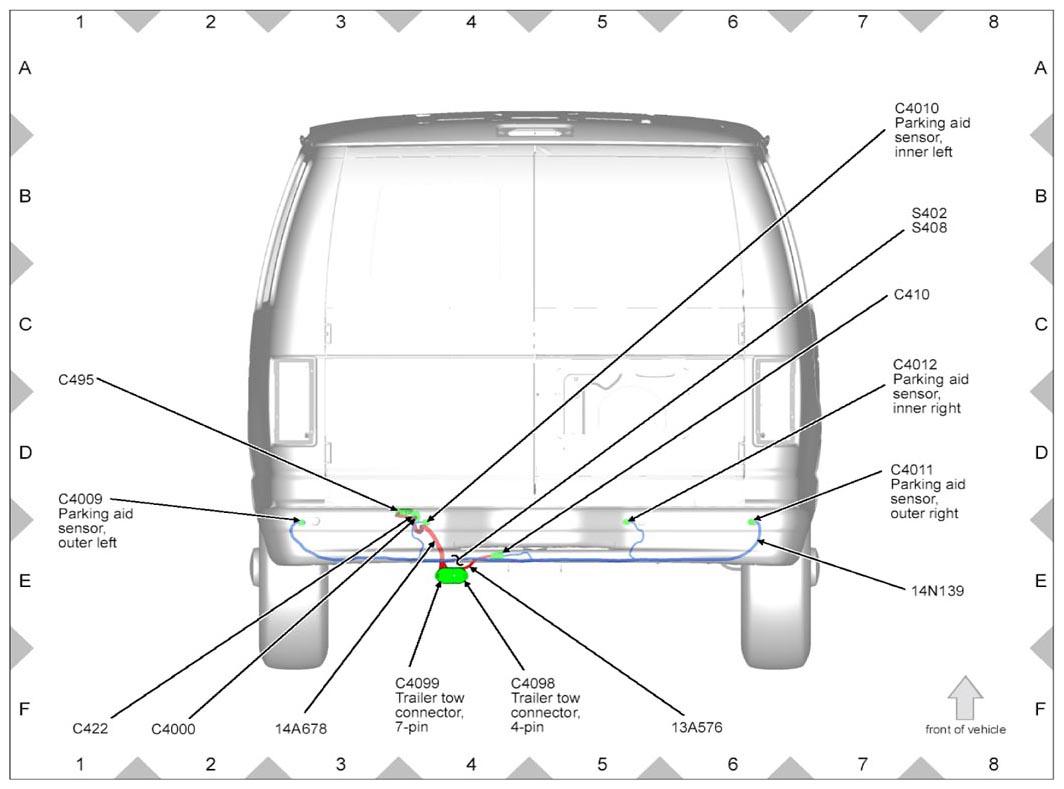

Fig 22: Rear Bumper Wiring Harness Location
Courtesy of FORD MOTOR CO.

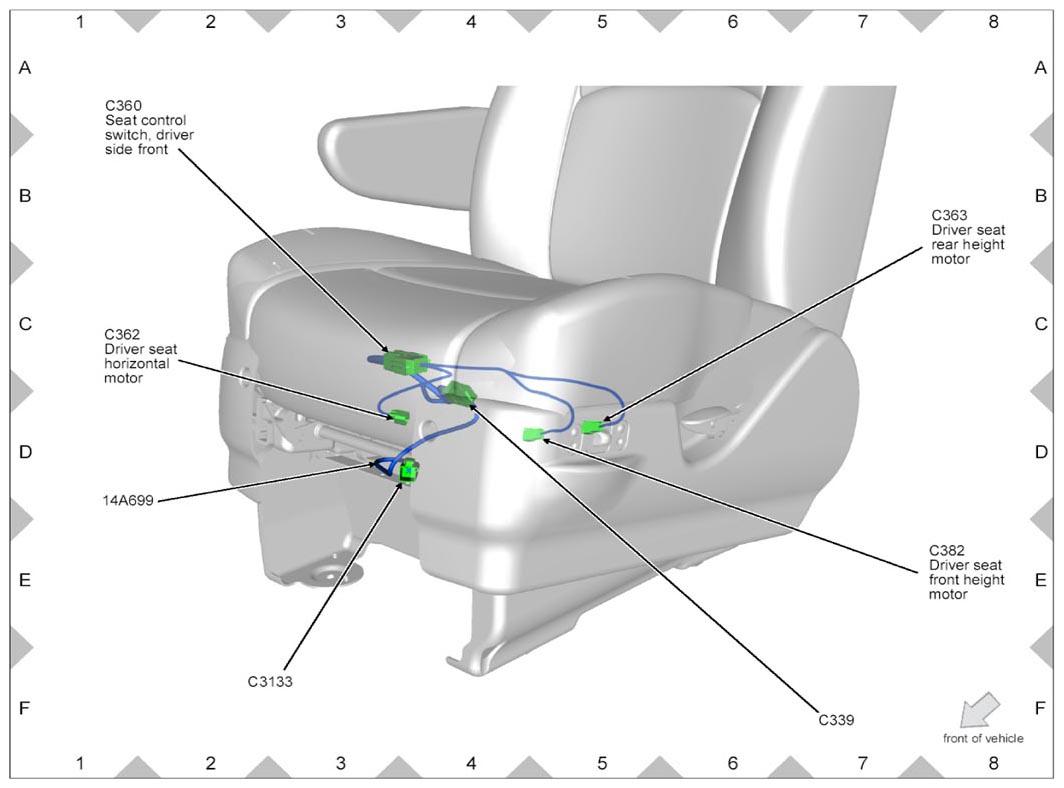

Fig 23: Driver Seat Wiring Harness Location
Courtesy of FORD MOTOR CO.

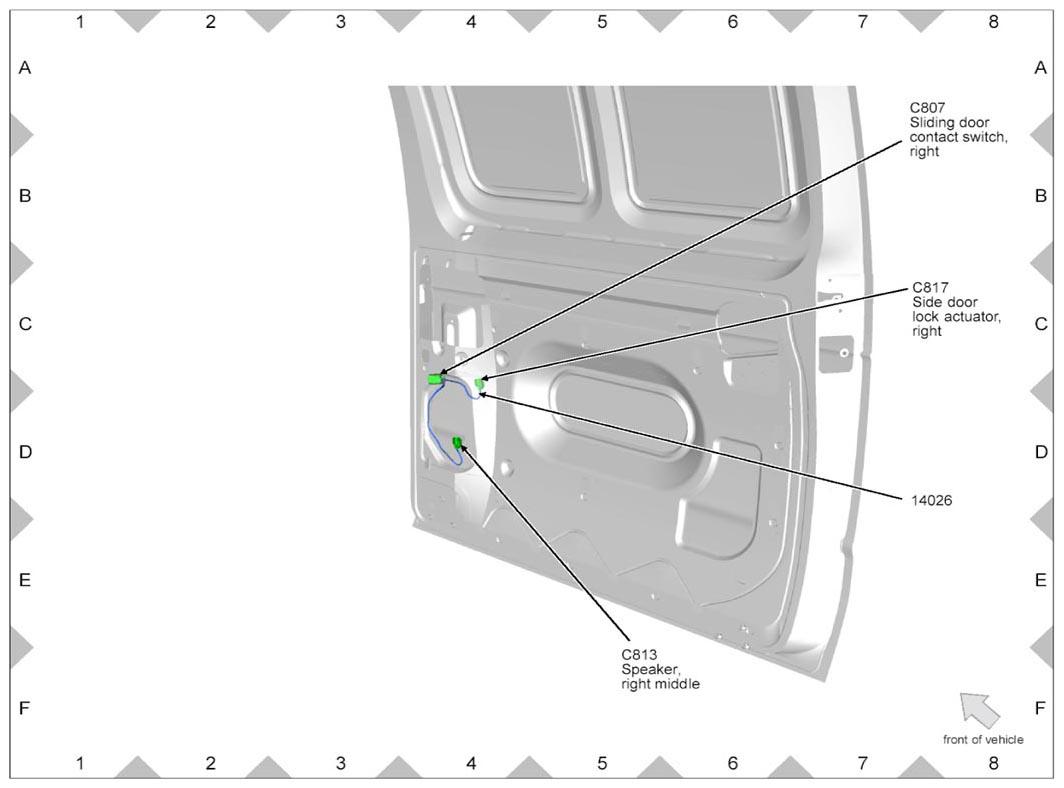

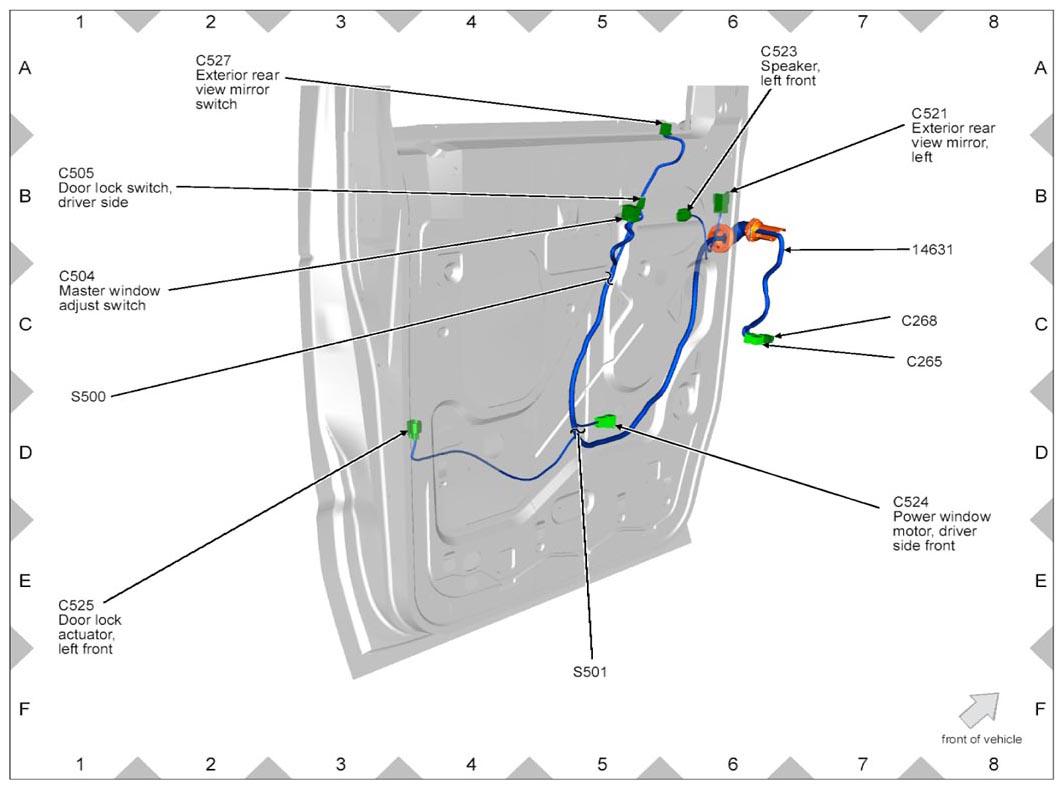

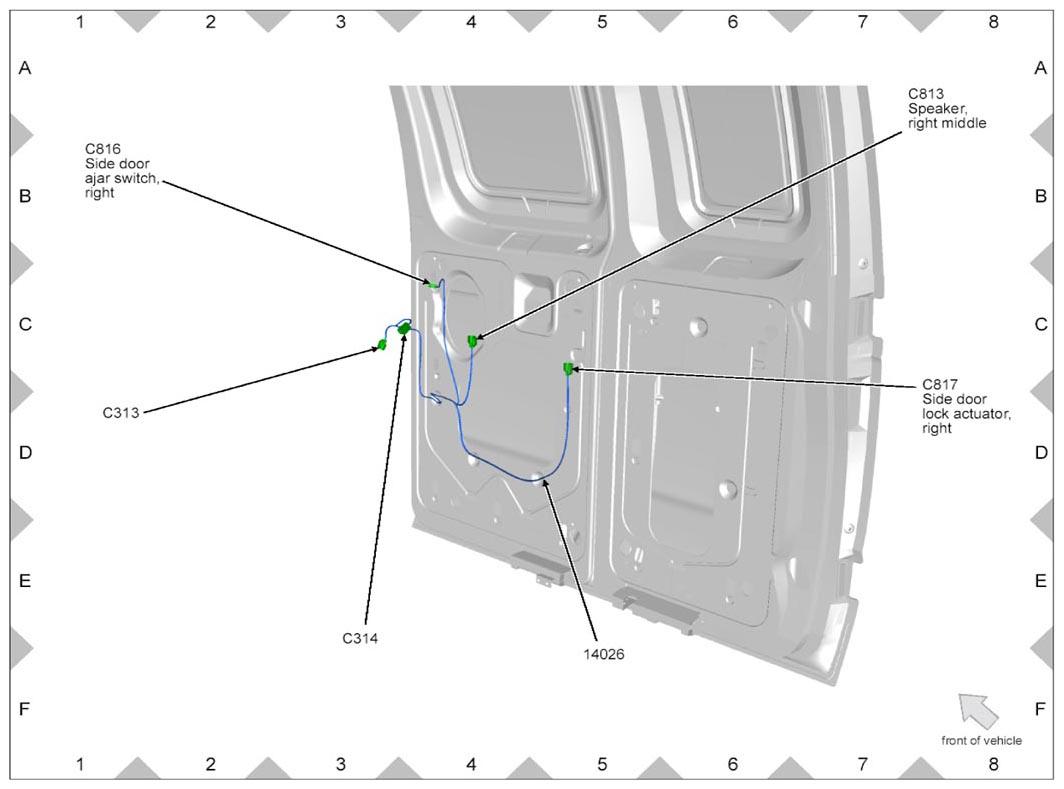

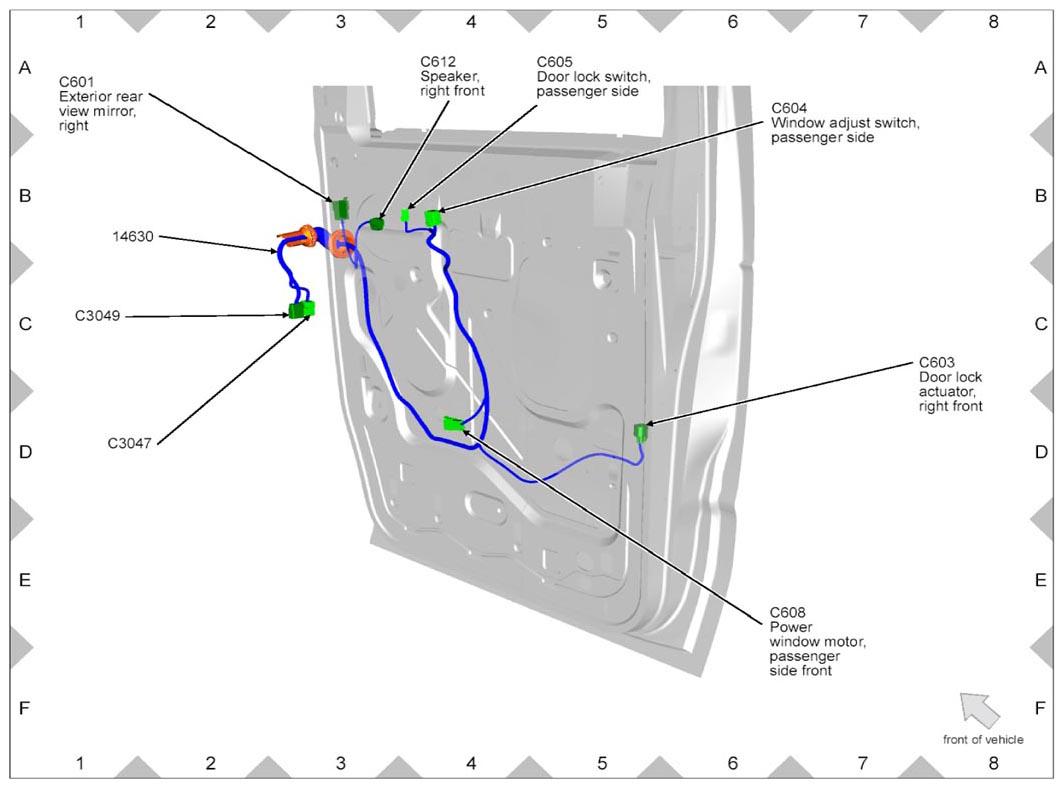

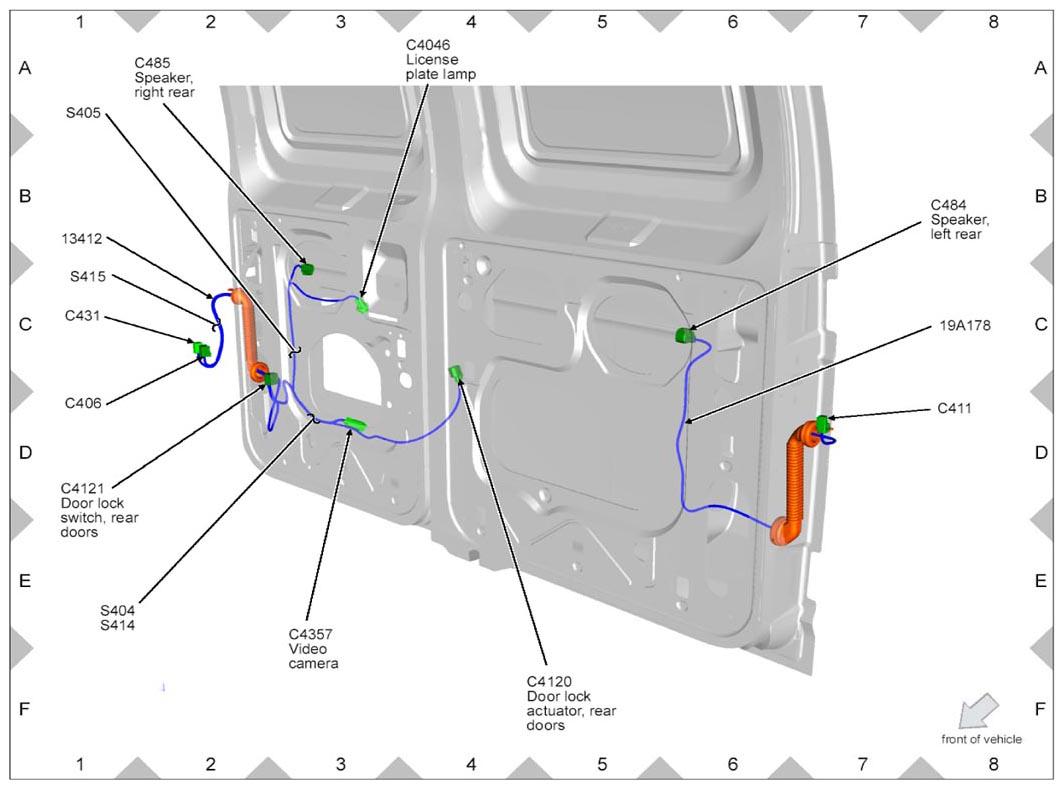

Fig 24: Door Panel Wiring Harness Location (1 Of 5)
Courtesy of FORD MOTOR CO.
Fig 25: Door Panel Wiring Harness Location (2 Of 5)
Courtesy of FORD MOTOR CO.
Fig 26: Door Panel Wiring Harness Location (3 Of 5)
Courtesy of FORD MOTOR CO.
Fig 27: Door Panel Wiring Harness Location (4 Of 5)
Courtesy of FORD MOTOR CO.
Fig 28: Door Panel Wiring Harness Location (5 Of 5)
Courtesy of FORD MOTOR CO.

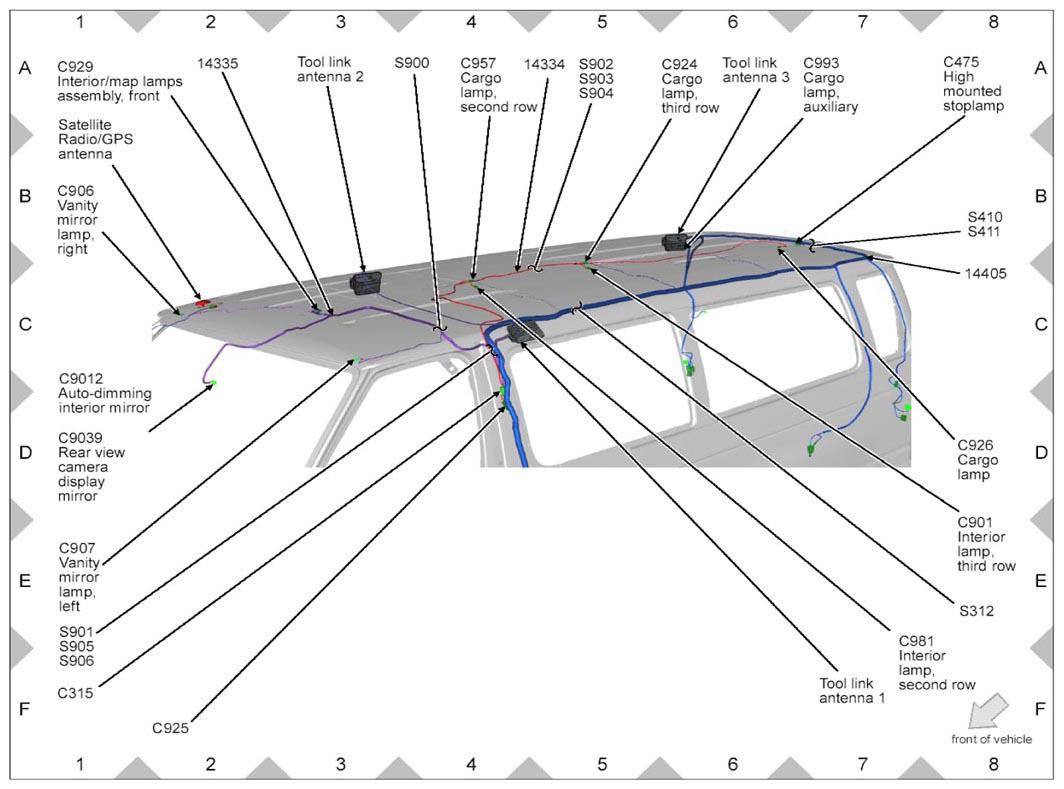

Fig 29: Roof Panel Wiring Harness Location
Courtesy of FORD MOTOR CO.

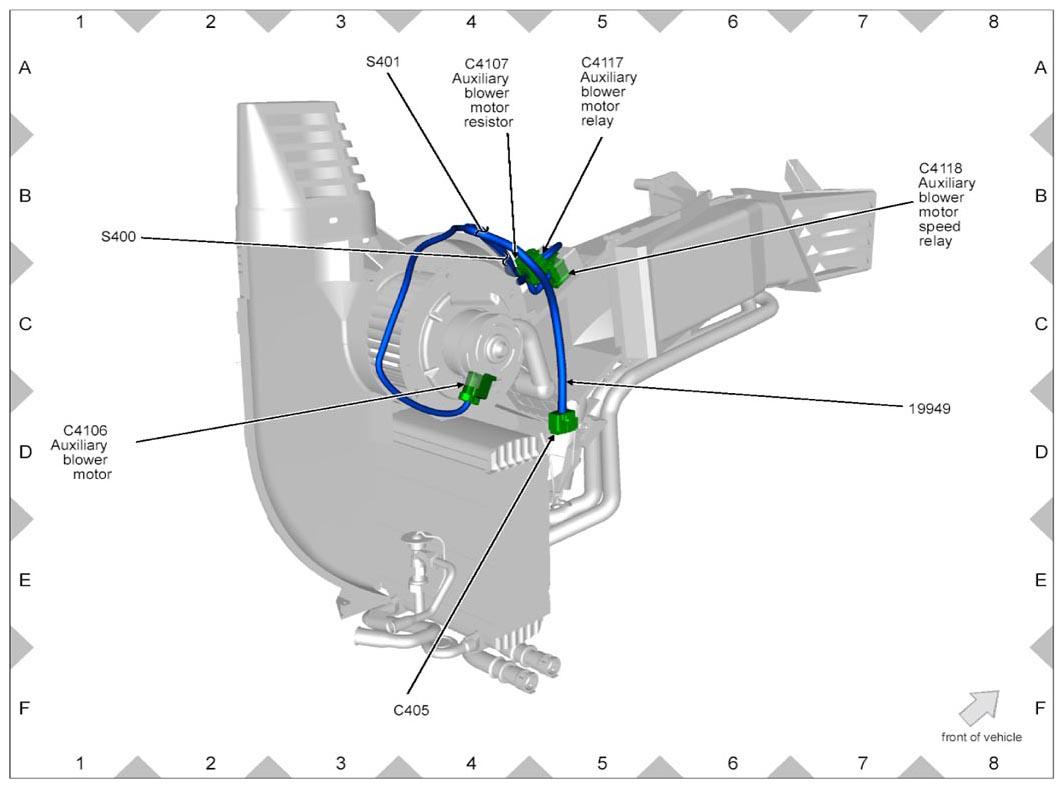

Fig 30: Blower Motor Wiring Harness Location
Courtesy of FORD MOTOR CO.

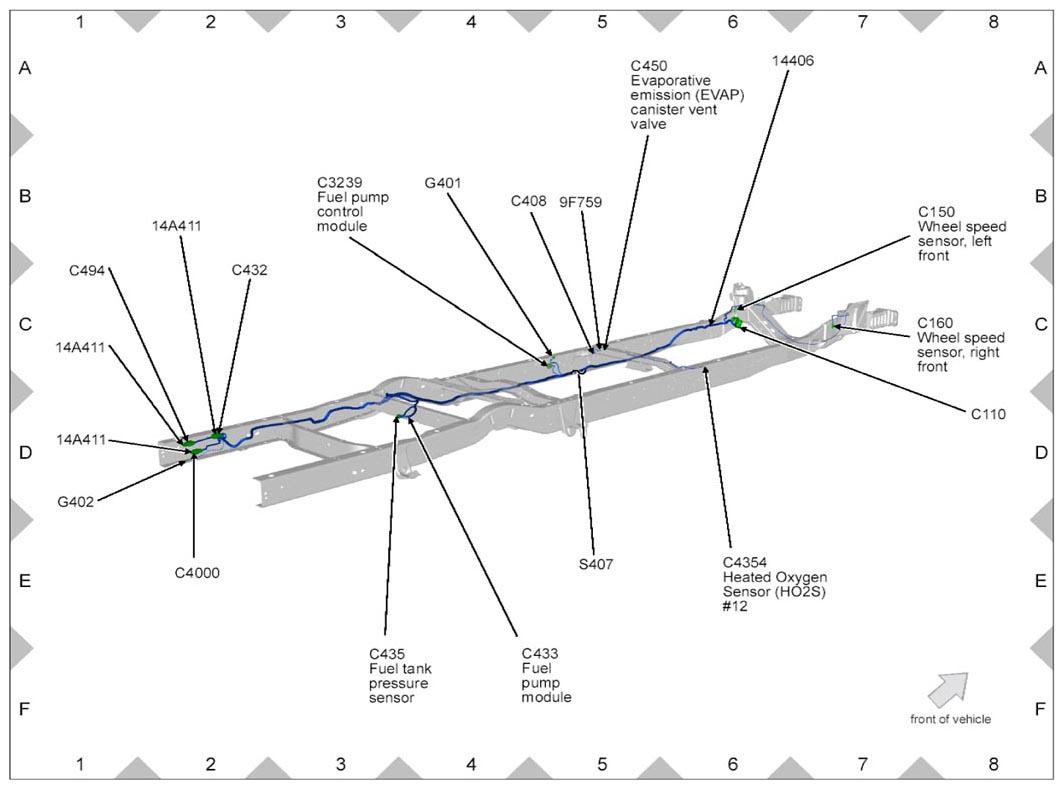

Fig 31: Vehicle Frame Wiring Harness Location
Courtesy of FORD MOTOR CO.

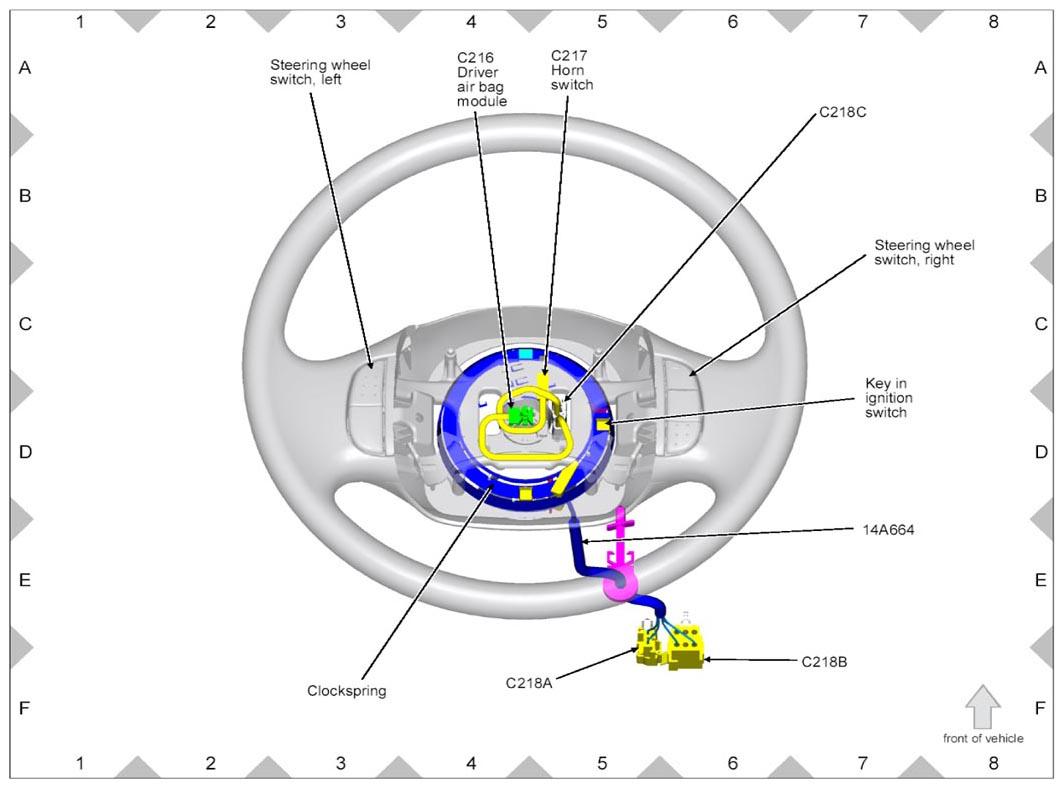

Fig 32: Steering Wheel Wiring Harness Location
Courtesy of FORD MOTOR CO.
