Parking Aid Module (PAM): Notes
WARNING: This page is about a different variant/trim than selected.
NOTE:
The Parking Aid Module (PAM) is located above the RH cowl side trim panel.

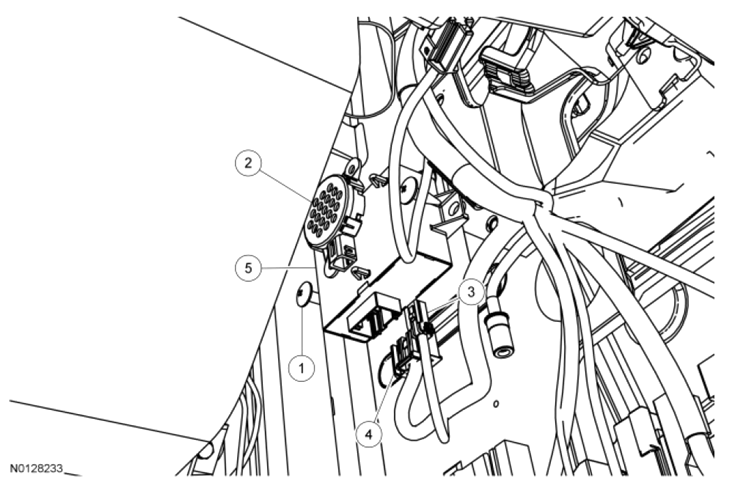

| Item | Part Number | Description |
|---|---|---|
| 1 | W706350 | Parking Aid Module (PAM) push-pins (2 required) |
| 2 | 15K864 | Parking aid speaker |
| 3 | - | Parking aid speaker electrical connector (part of 14401) |
| 4 | - | PAM electrical connector (part of 14401) |
| 5 | 15K866 | PAM |
