Removal and Installation

  1. Disconnect the Transmission Control Switch (TCS) connector.

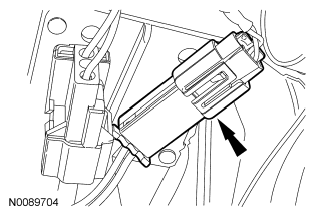

    Fig 1: Locating Transmission Control Switch (TCS) Connector
    G06601495Courtesy of FORD MOTOR CO.
  2. Remove the TCS.
    1. Remove the switch cover.
    2. Remove the switch.
      Fig 2: Removing Transmission Control Switch (TCS)
      G06141252Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
