Main Control Components

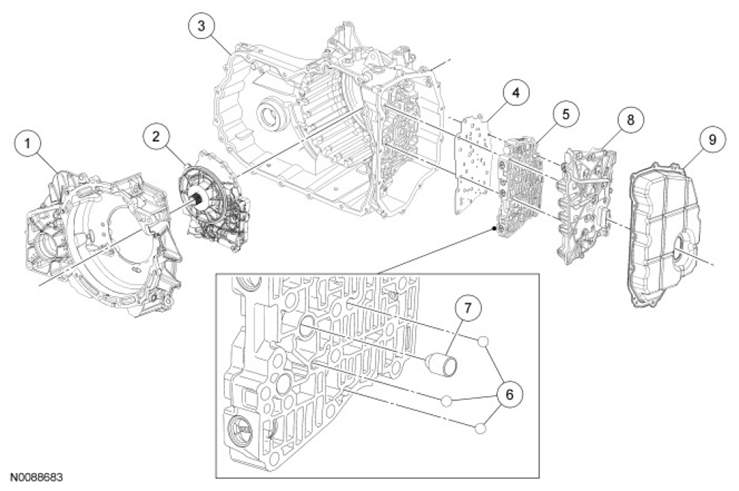

Fig 1: Identifying Main Control Assembly Components

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	7975	Torque converter housing
2	7A103	Pump assembly
3	7005	Transmission case
4	7Z490	Main control-to-transmission case separator plate
5	7A100	Valve body
6	7E195	Check balls
7	7J191	Solenoid damper (SSA)
8	7G391	Solenoid body assembly
9	7G004	Main control cover
