Automatic Transaxle/Transmission - 6F35
›
Description And Operation
›
Mechanical Components and Functions
›
Input Shaft
›
Input Shaft Exploded View
Input Shaft Exploded View

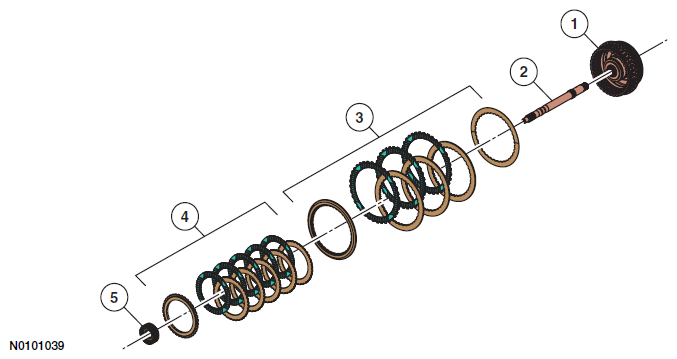

Fig 1: Exploded View Of Input Shaft Components
Courtesy of FORD MOTOR CO.
Item
Part Number
Description
1
7G384
Direct (3, 5, R)/ Overdrive (O/D) (4, 5, 6) clutch hub
2
7F213
Input shaft
3
7B164
Direct (3, 5, R) clutch
4
7B164
O/D (4, 5, 6) clutch
5
7D491
Center planetary sun gear
