Reverse Position: Notes

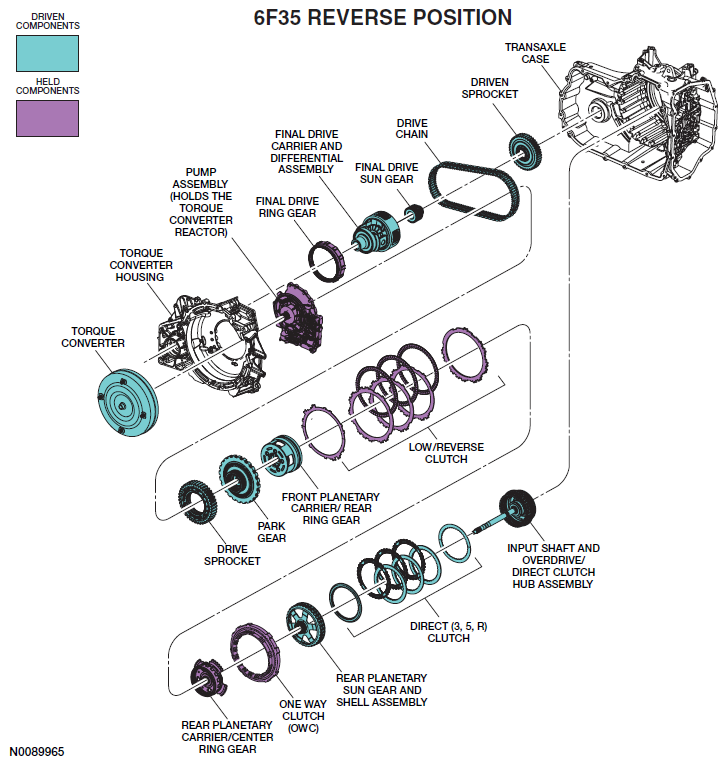

Fig 1: Identifying Reverse Position Components
G06096894Courtesy of FORD MOTOR CO.
