Digital Transmission Range (TR) Sensor: Installation

Install the TR sensor.
1. Install the TR sensor and park pawl actuating rod in the transmission case.
2. Install the manual shaft in the transmission case through the TR sensor.

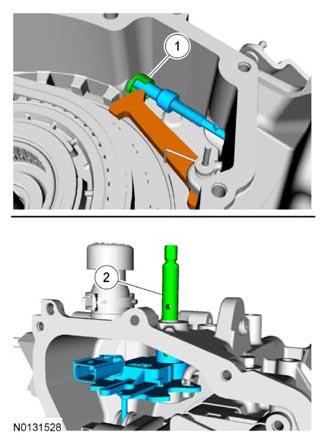

  Fig 1: Identifying TR Sensor And Manual Shaft
  Courtesy of FORD MOTOR CO.
Inspect the manual pin to make sure it is correctly installed in the manual valve. If it is not, pull the manual control lever shaft out and correctly install the manual pin in the manual valve and position the manual control lever shaft in place.

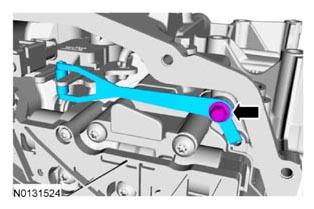

Fig 2: Identifying Manual Control Lever Shaft
Courtesy of FORD MOTOR CO.
Install a new TR sensor locking pin.

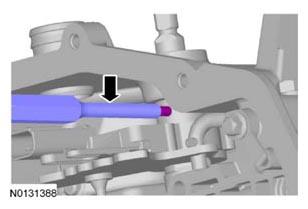

Fig 3: Locating TR Sensor Locking Pin
Courtesy of FORD MOTOR CO.
Install the TR sensor detent spring and the TR sensor detent spring bolt.
- Tighten to 13 Nm (115 lb-in).

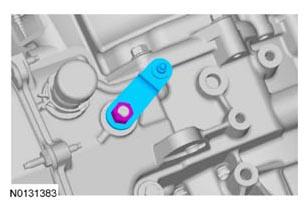

  Fig 4: Locating TR Sensor Detent Spring Bolt
  Courtesy of FORD MOTOR CO.
Connect the TR sensor electrical connector.

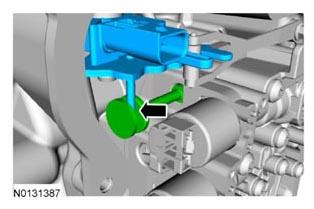

Fig 5: Locating TR Sensor Electrical Connector
Courtesy of FORD MOTOR CO.
Install the main control cover. Refer to MAIN CONTROL COVER .

NOTE: Make sure that when installing the manual control lever it is fully seated onto the manual control lever shaft or damage to the manual control lever shaft will occur and the lever will come loose.

NOTE: Make sure to hold the manual control lever while tightening the manual control lever nut or damage to the manual control lever and park components will occur.

Install the manual control lever and the manual control lever nut.
- Tighten to 24 Nm (18 lb-ft).

  Fig 6: Identifying Manual Control Lever Nut
  Courtesy of FORD MOTOR CO.
Connect the selector lever cable end to the manual control lever with the manual control lever and selector lever in DRIVE. Check selector lever cable adjustment. Refer to AUTOMATIC TRANSAXLE/TRANSMISSION EXTERNAL CONTROLS .

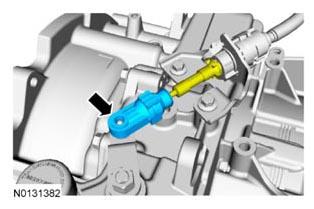

Fig 7: Locating Selector Lever Cable End
Courtesy of FORD MOTOR CO.
