Main Control Valve Body: Installation

Install the new separator plate and the 2 separator plate-to-solenoid body bolts.
- Tighten to 10 Nm (89 lb-in).

  Fig 1: Locating Separator Plate-To-Solenoid Body Bolts
  Courtesy of FORD MOTOR CO.
Install the solenoid body onto the main control valve body. Install the 2 solenoid body-to-valve body bolts.
- Tighten to 10 Nm (89 lb-in).

  Fig 2: Locating Solenoid Body-To-Valve Body Bolts
  Courtesy of FORD MOTOR CO.

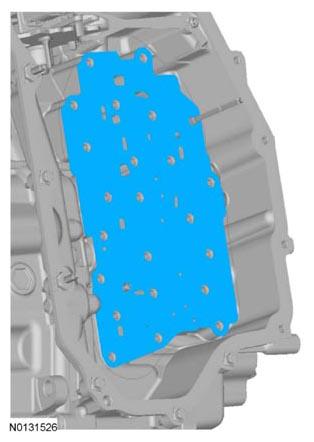

Position the OSS and TR sensor wiring harnesses aside and install the new main control-to-transaxle case separator plate.

Fig 3: Identifying Main Control-To-Transaxle Case Separator Plate
Courtesy of FORD MOTOR CO.

NOTE: Make sure that the manual lever pin (part of the TR sensor) is correctly installed in the manual valve.

Fig 4: Locating Main Control Assembly

Courtesy of FORD MOTOR CO.

NOTE: Make sure not to pinch the OSS or TR sensor wiring harnesses when installing the main control.

NOTE: Install the short and long main control-to-transaxle case bolts in the locations noted during disassembly.

Install the main control nut and the 22 main control-to-transaxle case bolts. Tighten in a crisscross pattern.
- Tighten to 10 Nm (89 lb-in).

  Fig 5: Locating Main Control Nut And Main Control-To-Transaxle Case Bolts
  Courtesy of FORD MOTOR CO.

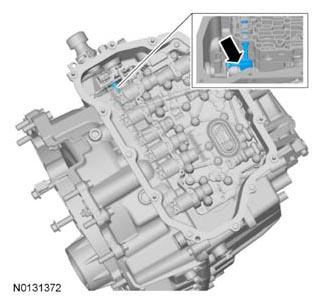

Connect the OSS sensor electrical connector.

Fig 6: Locating OSS Sensor Electrical Connector
Courtesy of FORD MOTOR CO.

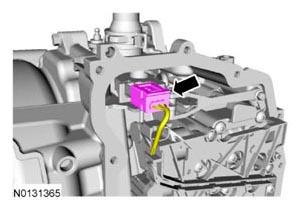

Connect the TR sensor electrical connector.

Fig 7: Locating TR Sensor Electrical Connector
Courtesy of FORD MOTOR CO.

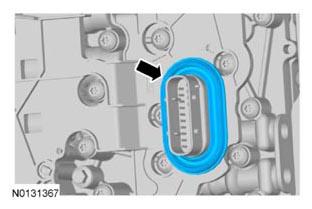

Install the main control-to-cover seal.

Fig 8: Locating Main Control-To-Cover Seal
Courtesy of FORD MOTOR CO.
Install the main control cover. For additional information, refer to MAIN CONTROL COVER .
