Differential Exploded View

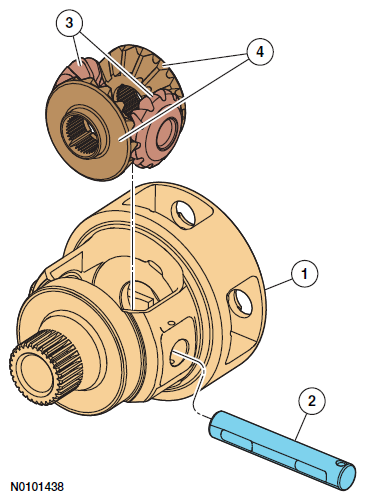

Fig 1: Exploded View Of Differential Components
G06096828Courtesy of FORD MOTOR CO.
Item Part Number Description
1 7F465 Differential housing
2 - Pinion shaft
3 - Pinion gears
4 - Side gears
