Differential Gear Assembly: Disassembly

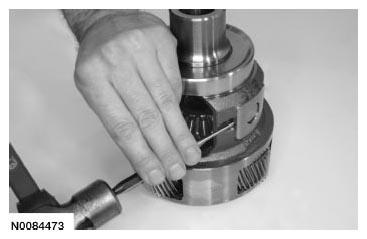

Drive the roll pin out of the differential. Discard the roll pin.

Fig 1: Driving Roll Pin Out Of Differential
Courtesy of FORD MOTOR CO.
Remove the differential pin.

Fig 2: Removing Differential Pin
Courtesy of FORD MOTOR CO.

NOTE: Do not mix up the washers from the side or spider gears that they were originally assembled with. Assembly of the differential with the wrong washers can cause excessive wear to the differential carrier, spider or side gears.

Rotate the side gears along with the spider gears and remove the side gears and the spider gears.
1. Side gear
2. Spider gear

  Fig 3: Removing Side Gear And Spider Gear
  Courtesy of FORD MOTOR CO.

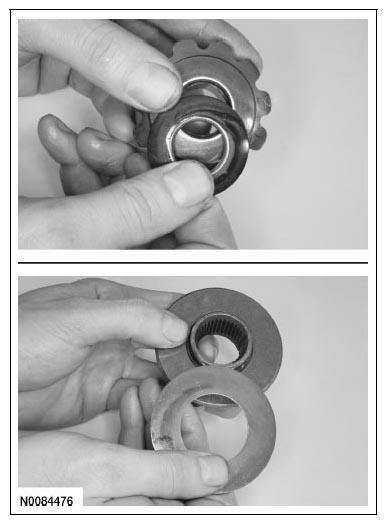

Remove the washers from the side and spider gears, but keep the washers with the gear that it was originally assembled with.

Fig 4: Removing Washer
Courtesy of FORD MOTOR CO.
