Side Obstacle Detection (SOD) Module: Notes
WARNING: This page is about a different car, the 2013 Lincoln MKX and 2013 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

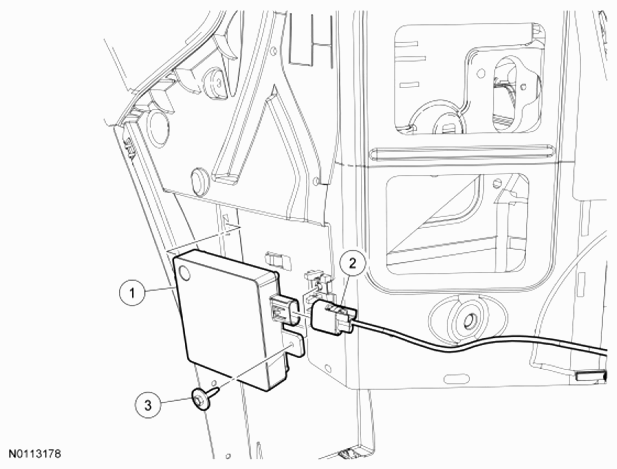

NOTE:
Rear bumper cover removed for clarity.
NOTE:
Left rear quarter panel shown in illustration, right side similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | 14C689 | Side Obstacle Detection Control Module - Left (SOD-L)/Side Obstacle Detection Control Module - Right (SOD-R) |
| 2 | - | SOD-L/SOD-R electrical connector (part of 14A005) |
| 3 | W503901 | SOD-L/SOD-R screw and washer |
