Removal And Installation: Clockspring: Notes
WARNING: This page is about a different car, the 2013 Lincoln MKX and 2013 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.

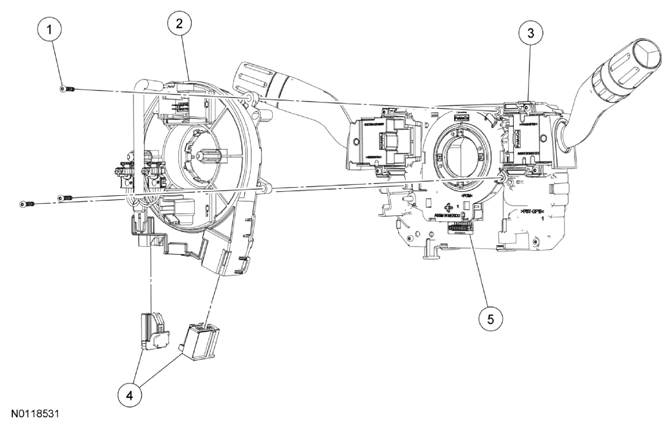

| Item |
Part Number |
Description |
| 1 |
W506943 |
Clockspring screws (3 required) |
| 2 |
14A664 |
Clockspring |
| 3 |
3F791 |
Steering Column Control Module (SCCM) |
| 4 |
- |
Clockspring electrical connector(s) (part of 14401) |
| 5 |
- |
SCCM electrical connector (part of 3F791) |
