Body Control Module (BCM)
NOTE:
For component location, see appropriate OEM COMPONENT HARNESS LOCATION CHARTS
article.

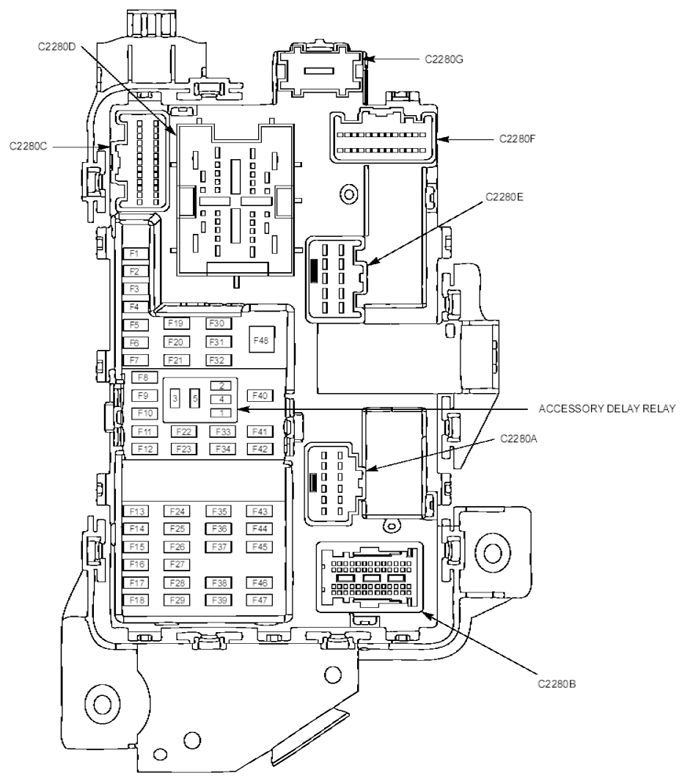

BODY CONTROL MODULE (BCM) RELAY IDENTIFICATION
| RELAY DESCRIPTION |
|---|
| Accessory Delay Relay |
BODY CONTROL MODULE FUSE IDENTIFICATION LEGEND
| Fuse | Amps | Circuits protected |
|---|---|---|
| F1 | 30 | Power window motor, driver side front |
| F2 | 15 | Not used |
| F3 | 30 | Power window motor, passenger side front |
| F4 | 10 | Glove box lamp, Interior lamps, Vanity mirrors |
| F5 | 20 | Subwoofer, Audio Digital Signal Processing (DSP) module |
| F6 | 5 | Tire Pressure Monitor (TPM) module |
| F7 | 7.5 | Left power seat switch - with memory Driver Seat Module (DSM) - with memory Exterior rear view mirror switch |
| F8 | 10 | Not used |
| F9 | 10 | Liftgate/Trunk Module (LTM) |
| F10 | 10 | Wiper relay, Rear washer relay |
| F11 | 10 | Instrument Panel Cluster (IPC), Head Up Display (HUD) module |
| F12 | 15 | Puddle lamps, Scuff plate lamps, Interior lighting, Backlighting |
| F13 | 15 | Right front park/turn lamps - lamp, Right stop/turn trailer tow lamp relay - turn lamp, Right rear lamp assembly - turn lamp |
| F14 | 15 | Left front park/turn lamps - turn lamp, Left stop/turn trailer tow lamp relay - turn lamp, Left rear lamp assembly - turn lamp |
| F15 | 15 | High mounted stoplamp, Stoplamp relay, Auto dimming interior mirror unit - reverse, Rear Lamp assemblies - backup lamp |
| F16 | 10 | Right headlamp - low beam |
| F17 | 10 | Left headlamp - low beam |
| F18 | 10 | Brake shift interlock, Rear seat release relay, Powertrain Control Module (PCM), Passive anti-theft transceiver - w/o IA, Keyless entry keypad - w/o IA, Start/Stop switch - with IA |
| F19 | 20 | Audio Digital Signal Processing (DSP) module, Audio amplifier |
| F20 | 20 | Door look actuators - without IA |
| F21 | 10 | Not used |
| F22 | 20 | Horn |
| F23 | 15 | Remote Function Actuator (RFA) module, Front Lighting Control Module (FLM), Steering Column Control Module (SCCM) |
| F24 | 15 | Data Link Connector (DLC), Steering Column Control Module (SCCM) |
| F25 | 15 | Liftgate latch, Liftgate/Trunk Module (LTM) |
| F26 | 5 | Global Positioning System Module (GPSM) |
| F27 | 20 | Remote Function Actuator (RFA) module |
| F28 | 15 | Ignition switch - w/o IA, Start/Stop switch - with IA |
| F29 | 20 | Front Controls Interface Module (FCIM), Audio Control Module (ACM), Front Control/Display Interface Module (FCDIM) - w/o SYNC GEN 2, Accessory Protocol Interface Module (APIM) - with SYNC |
| F30 | 15 | Parking lamp trailer tow relay, Headlamps - park lamp, Front park/turn lamps park lamp, Auxiliary Parking lamps - Edge |
| F31 | 5 | Not used |
| F32 | 15 | Door lock switches, Power window motors, Window adjust switches, Auto-dimming interior mirror unit, Roof opening panel motor assembly |
| F33 | 10 | Not used |
| F34 | 10 | Left rear heated seat module, Side obstacle detection control modules, Parking Aid Module (PAM), Video camera |
| F35 | 5 | Head Up Display (HUD) module - with adaptive cruise control |
| F36 | 10 | Heated Steering Wheel Module (HSWM) |
| F37 | 10 | Air inlet mode door actuator - 3.5L/3.7 L TIVCT |
| F38 | 10 | Not used |
| F39 | 15 | Headlamps - high beam |
| F40 | 10 | Rear Lamp assemblies - park lamp License plate lamps, Illuminated liftgate appliques - park lamp |
| F41 | 7.5 | Restraints Control Module (RCM), Occupant Classification System Module (OCSM) |
| F42 | 5 | Brake shift interlock - Grade assist 2.0L GTDI |
| F43 | 10 | Not used |
| F44 | 10 | Not used |
| F45 | 5 | Not used |
| F46 | 10 | HVAC module |
| F47 | 15 | Fog lamps, Cornering lamps |
| F48 | 30 c.b. | Master window adjust switch, Window adjust switch, passenger side |
