Input Shaft Exploded View

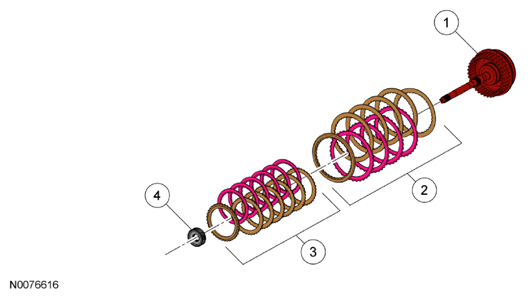

Fig 1: Exploded View Of Input Shaft Components
G07930867Courtesy of FORD MOTOR CO.
Item Part Number Description
1 7G384 Input shaft (part of direct/Overdrive (O/D) clutch assembly)
2 - Direct clutch
3 - O/D clutch
4 7D063 Center planetary sun gear
