Reverse Position: Notes

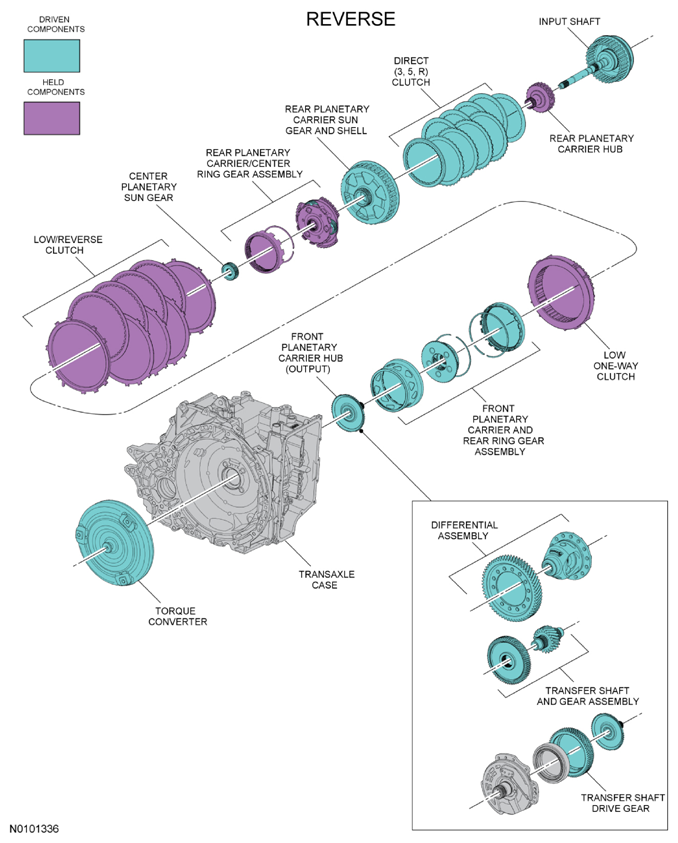

Fig 1: Exploded View Of Transaxle (Reverse Position)
G07930941Courtesy of FORD MOTOR CO.
