Fuel Pump Control Module: Notes

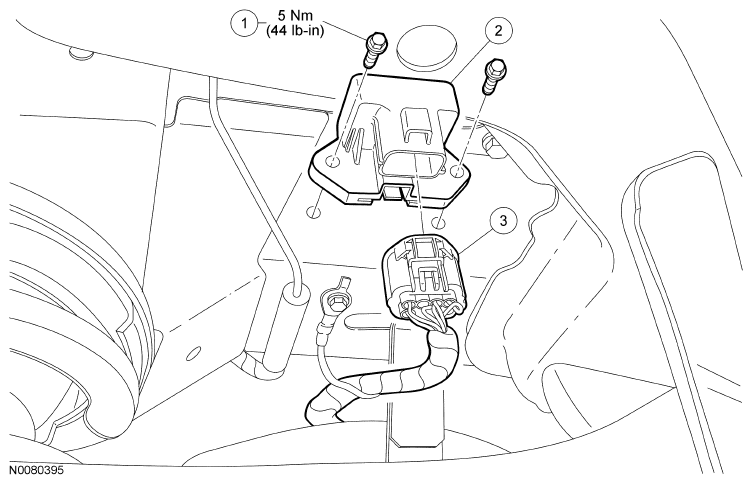

Fig 1: Fuel Pump Control Module Replacement Components With Torque Specifications
Courtesy of FORD MOTOR CO.
Item
Part Number
Description
1
W505256
Fuel Pump (FP) control module bolt (2 required)
2
9345
FP control module
3
14A464
FP control module electrical connector
