Powertrain Control Module (PCM): Notes

SPECIAL TOOLS CHART

Vehicle Communication Module (VCM) and Integrated Diagnostic System (IDS) software with appropriate hardware, or equivalent scan tool

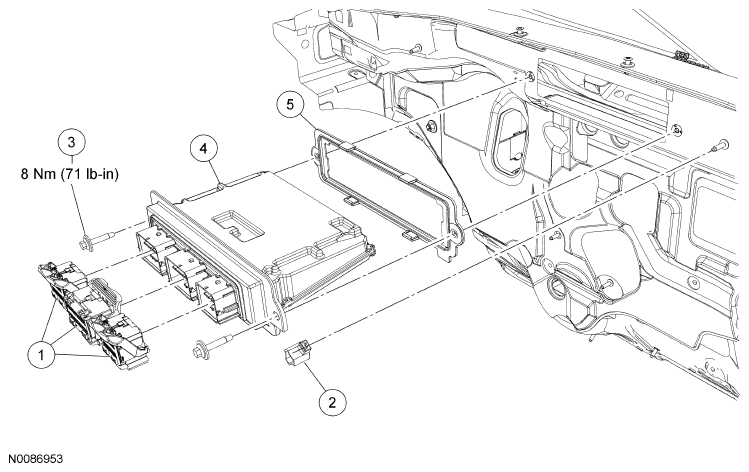

Fig 1: Powertrain Control Module Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	14A464	PCM electrical connectors (part of 12C508)
2	-	Wire harness retainer (part of 12C508)
3	W806925	PCM bolt (2 required)
4	12A650	PCM
5	12A696	PCM cowl seal
