Console - Floor: Notes

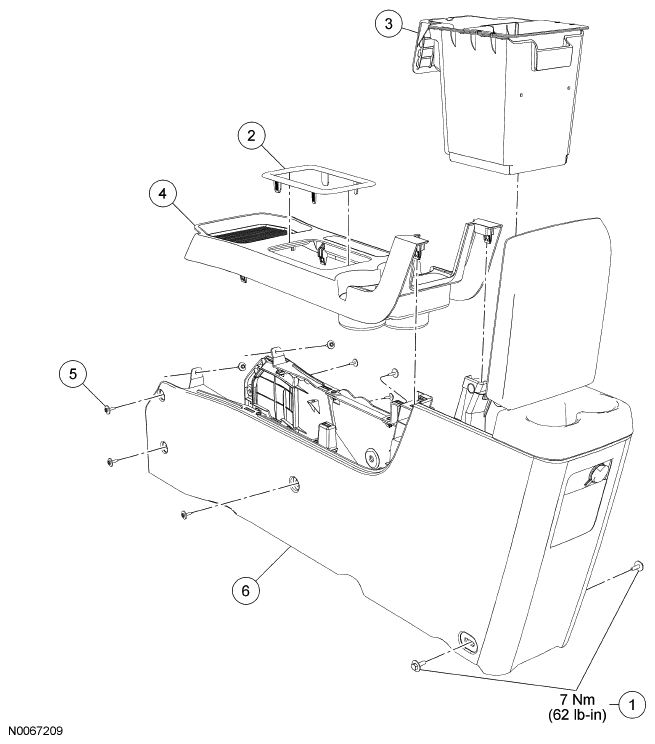

Fig 1: Exploded View Of Floor Console With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W707257	Floor console rear bolts
2	7E391	Selector lever trim ring
3	-	Floor console storage bin
4	045A76	Floor console finish panel
5	W705796	Floor console screw (8 required)
6	045A36	Floor console
