Instrument Panel

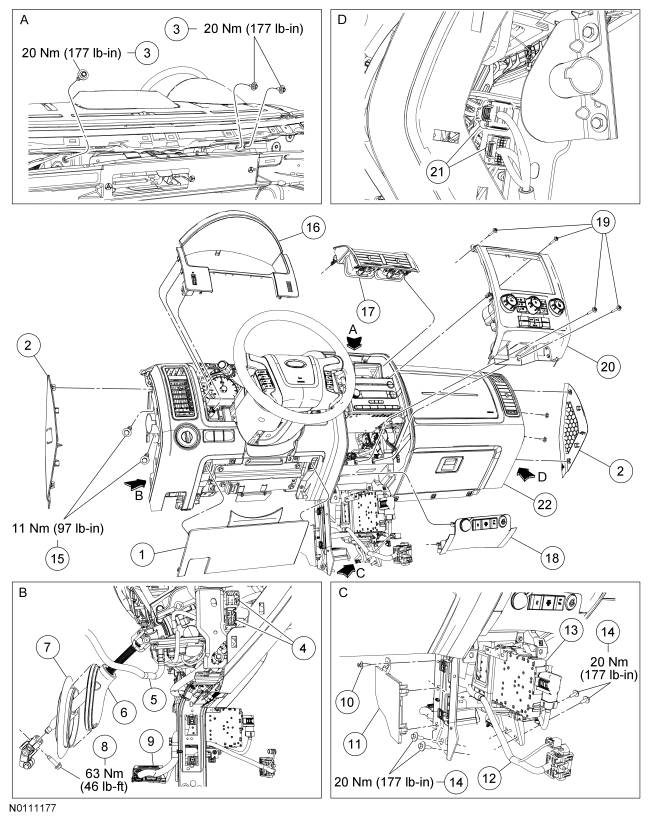

Fig 1: Exploded View Of Instrument Panel With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	3524	Steering column opening trim panel
2	04480 RH/04481 LH	Instrument panel side finish panel
3	W710203	Instrument panel upper cowl bolts (3 required)
4	-	LH side instrument panel electrical connectors (part of 14401)
5	-	Steering module electrical connector (part of 14401)
6	3C611	Steering column shaft access cover
7	3D677	Steering column shaft weather shield
8	W713065	Steering column intermediate shaft-to-coupling bolt
9	-	Restraints Control Module (RCM) electrical wiring harness (part of 14401)
10	-	Scrivet
11	-	RCM access cover
12	-	Floor console electrical wiring harness (part of 14401)
13	-	Smart Junction Box (SJB)
14	W712253	Instrument panel center brace bolts (4 required)
15	W707257	Instrument panel side bolts (4 required)
16	044D70	Instrument cluster finish panel
17	044A82	Center upper instrument panel finish panel
18	04608	Center lower instrument panel finish panel
19	W713306	Center middle instrument panel finish panel screws (4 required)
20	04302	Center middle instrument panel finish panel
21	-	RH side instrument panel electrical connectors (part of 14401)
22	04320	Instrument panel

For additional information, refer to the appropriate procedures in this service information.
