Engine Ignition Components - Exploded View

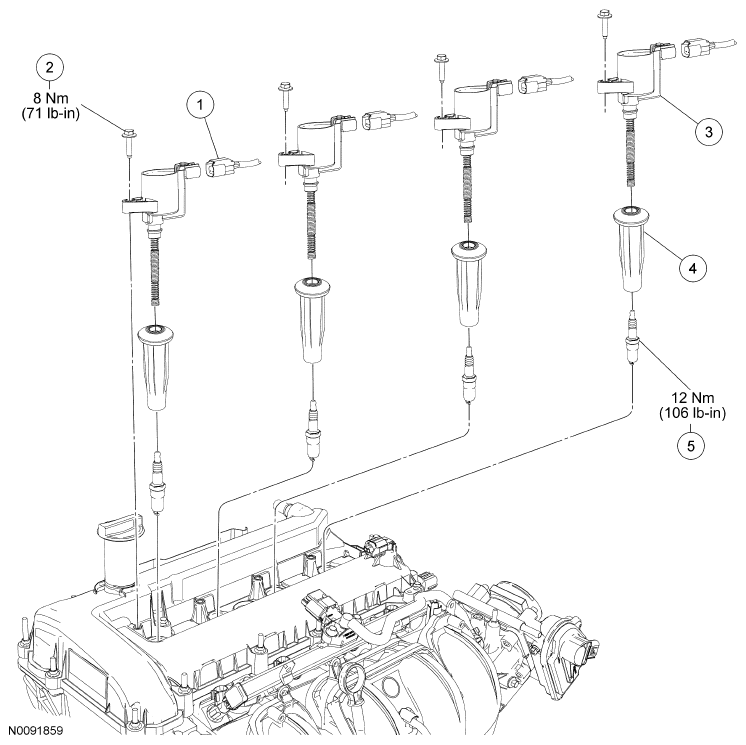

Fig 1: Exploded View Of Engine Ignition Components With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	14A464	Ignition coil electrical connector (4 required)
2	W500215	Ignition coil bolt (4 required)
3	12A366	Ignition coil (4 required)
4	12A402	Coil boot (4 required)
5	12405	Spark plug (4 required)

1. For additional information, refer to the appropriate procedures in this service information.
