EVAP Monitor

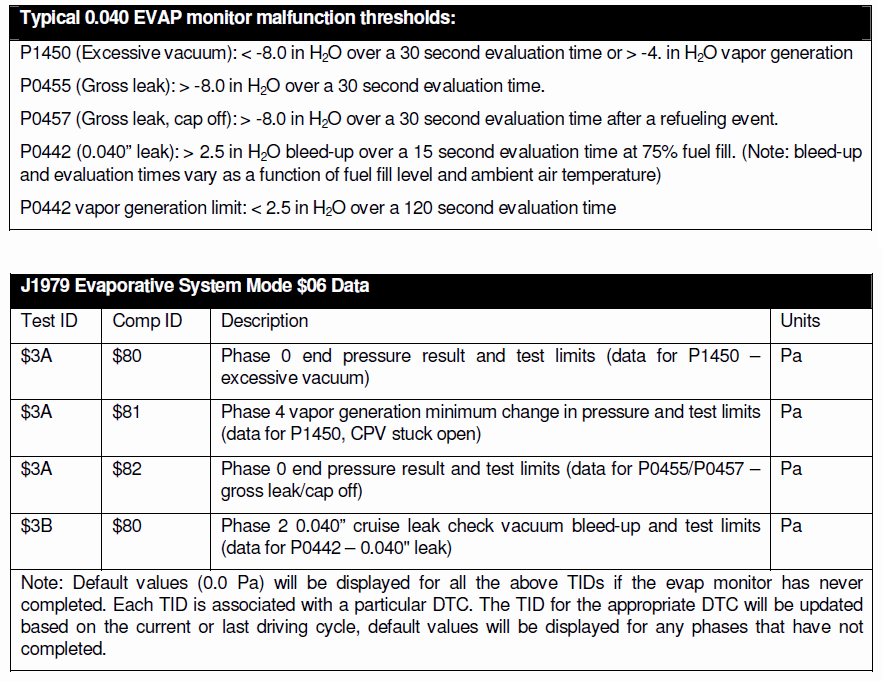

Fig 1: Mode $06 Data For EVAP Monitor (0.040" Leak)

Courtesy of FORD MOTOR CO.

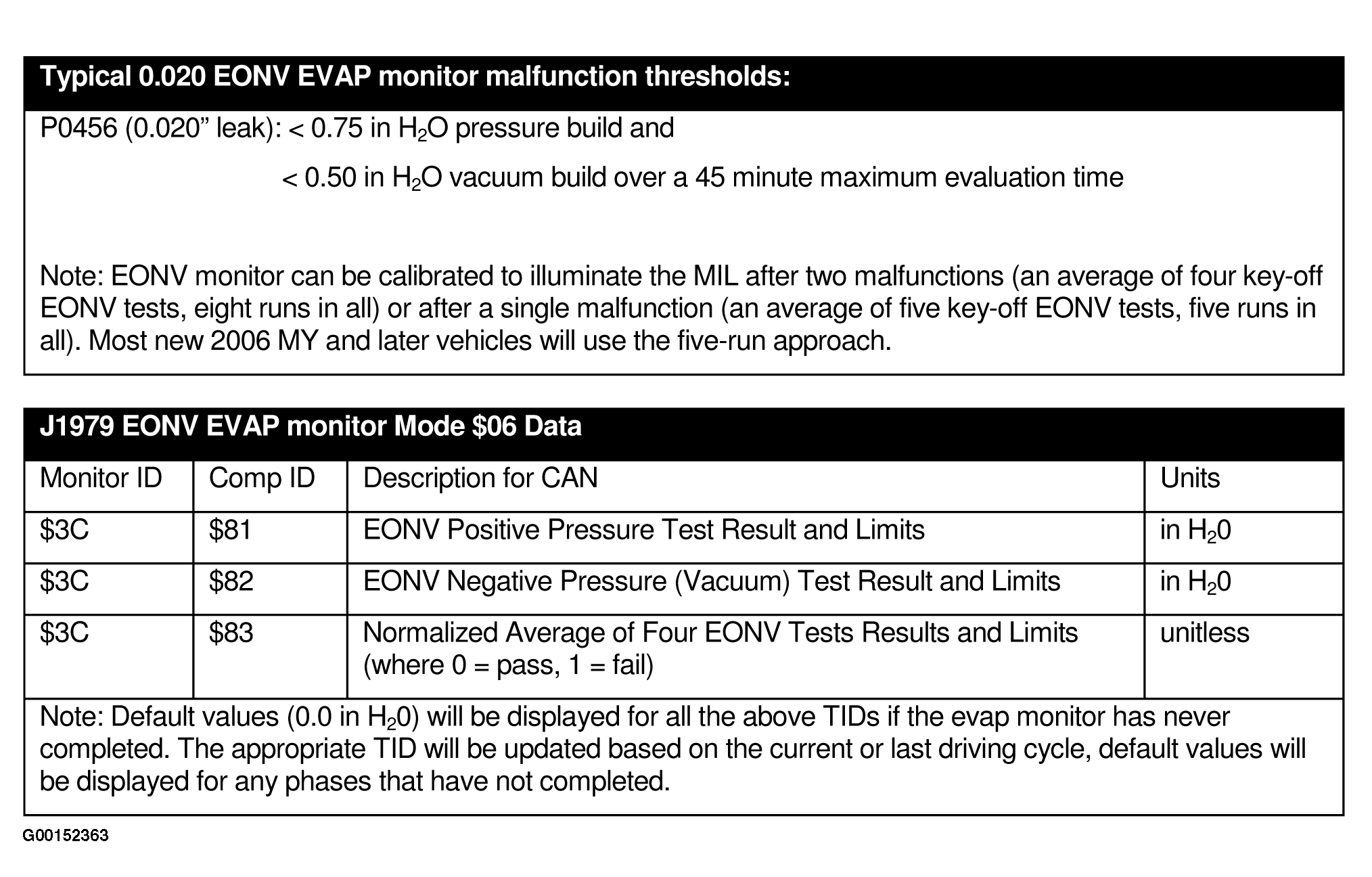

Fig 2: Mode $06 Data For EVAP Monitor (EONV 0.020" Leak)

Courtesy of FORD MOTOR CO.

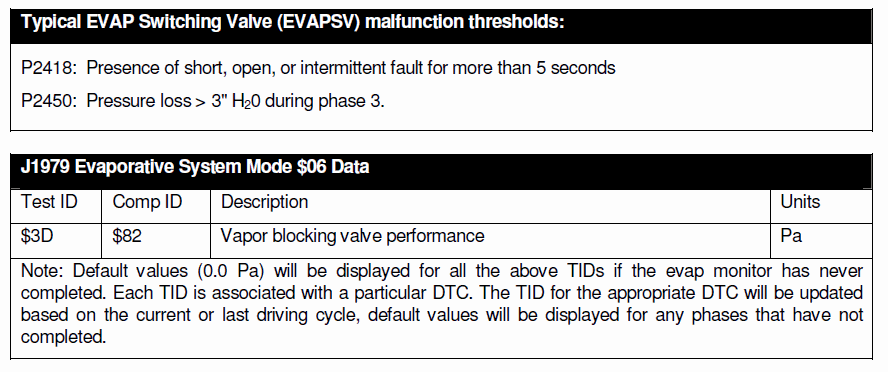

Fig 3: Mode $06 Data For EVAP Switching Valve

Courtesy of FORD MOTOR CO.

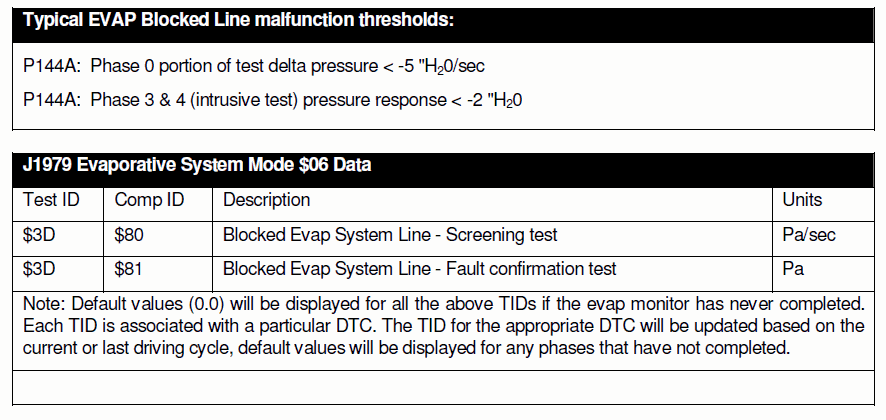

Fig 4: Mode $06 Data For EVAP Blocked Line

Courtesy of FORD MOTOR CO.
