Occupant Classification Sensor - Service Kit: Notes

SPECIAL TOOLS CHART

Vehicle Communication Module (VCM) and Integrated Diagnostic System (IDS) software with appropriate hardware, or equivalent scan tool

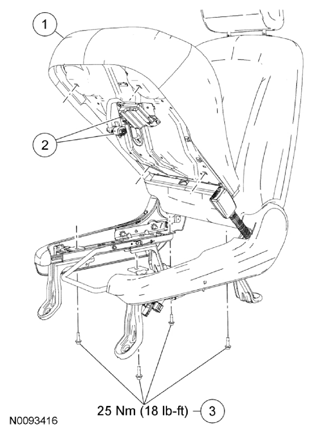

Fig 1: Seat Cushion Assembly, Seat Track-To-Cushion Frame Bolts And Electrical Connectors With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Seat cushion assembly
2	-	Electrical connectors (part of 603B02)
3	-	Seat track-to-cushion frame bolts

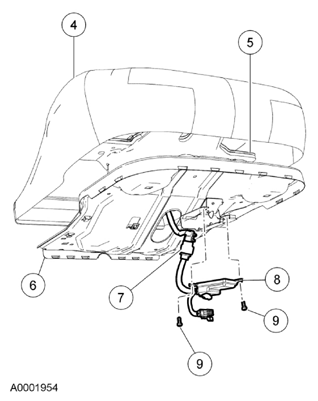

Fig 2: Identifying Occupant Classification Sensor Components

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
4	62900	Seat cushion trim cover
5	603B02	Occupant Classification System (OCS) assembly
6	-	Seat cushion pan
7	-	Pressure sensor (part of 603B02)
8	-	Occupant Classification System Module (OCSM) (part of 603B02)
9	391950	OCSM rivets (part of 603B02) (2 required)
