Passenger Air Bag Module: Notes

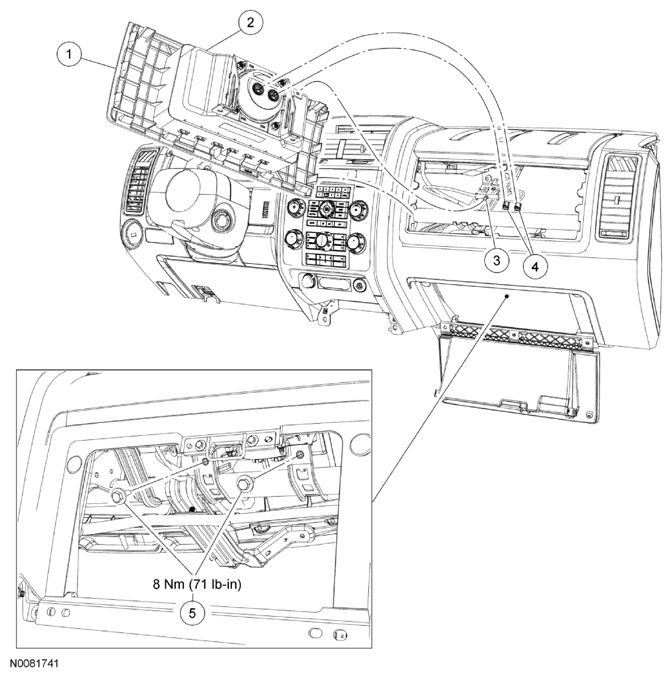

Fig 1: Passenger Air Bag Module Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	04338	Passenger air bag cover
2	044A74	Passenger air bag module assembly
3	-	Wire harness routing clip (part of 14401)
4	-	Passenger air bag module electrical connectors (part of 14401) (2 required)
5	W505422	Passenger air bag module bolts (2 required)
