Restraints Control Module (RCM): Notes

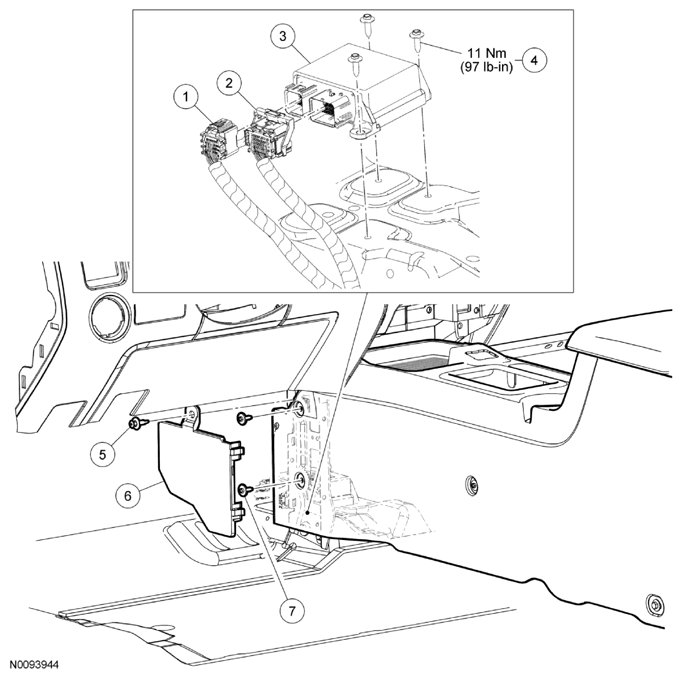

Fig 1: Restraints Control Module Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Small Restraints Control Module (RCM) electrical connector (part of 14401)
2	-	Large RCM electrical connector (part of 14401)
3	14B321	RCM
4	W709970	RCM bolts (3 required)
5	W706555	Scrivet
6	045G02	RCM access cover
7	W705796	Screw (2 required)
